Export Slices to EOS

About this Block

The Export Slices to EOS block exports slice data as a CLI (Common Layer Interface) file. This file can then be used in EOSPRINT 2 software. If the Supports input is checked, the block will generate the CLI as supports. The CLI file can be exported as ASCII or Binary format.

Example File

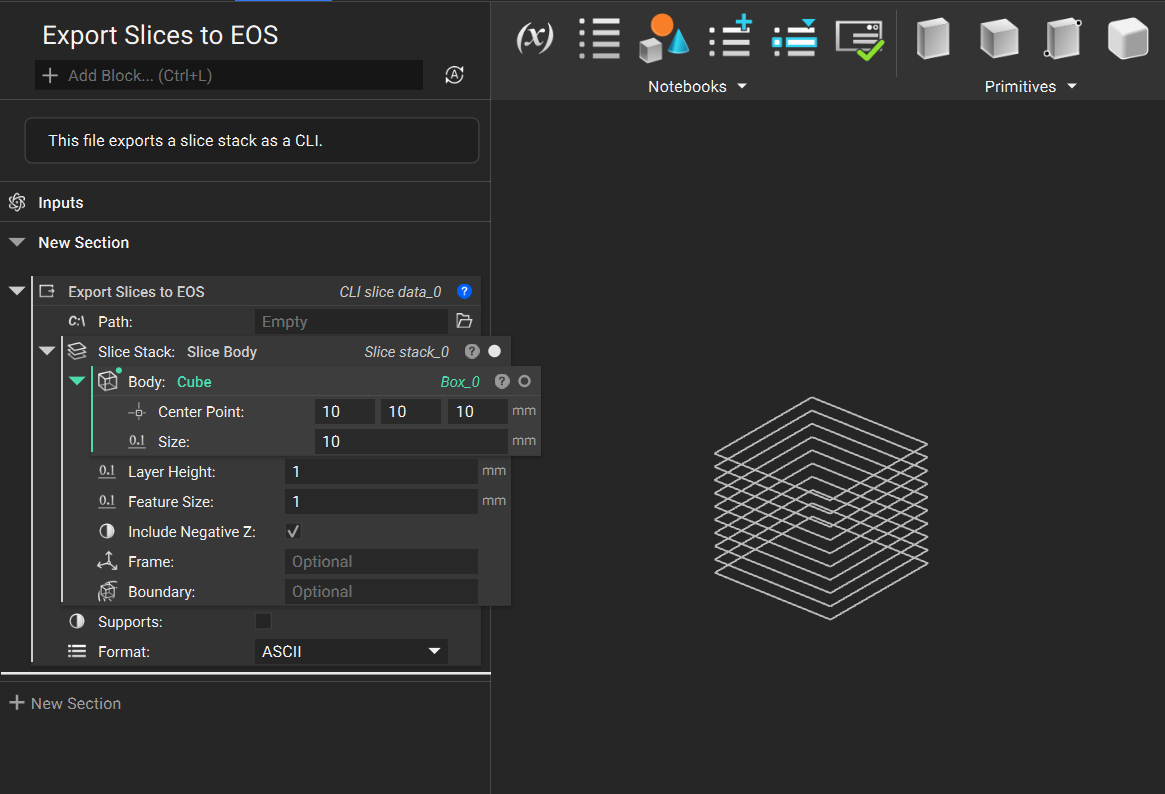

Download Example: Export Slices to EOS This file exports a slice stack as a CLI.

Export Slices to EOS

Export slice stack data to a CLI file for importing into EOSPRINT 2.

Inputs

Name	Type	Description
Path	Path	Path to export the CLI file to.
Slice stack	Slice Stack	Slice stack to generate the CLI file from.
Supports	Bool	If checked, generate the CLI file as supports.
Format	Ascii or Binary Enum	Format to export the CLI file as.

Outputs

Type
CLI slice data
