Cellular Noise 3D

About this Block

The Cellular Noise 3D block creates a scalar field gradient composed of pseudorandom values, using the Worley noise algorithm. The field generated by the Cellular Noise block is infinite and non-dimensional.

Example File

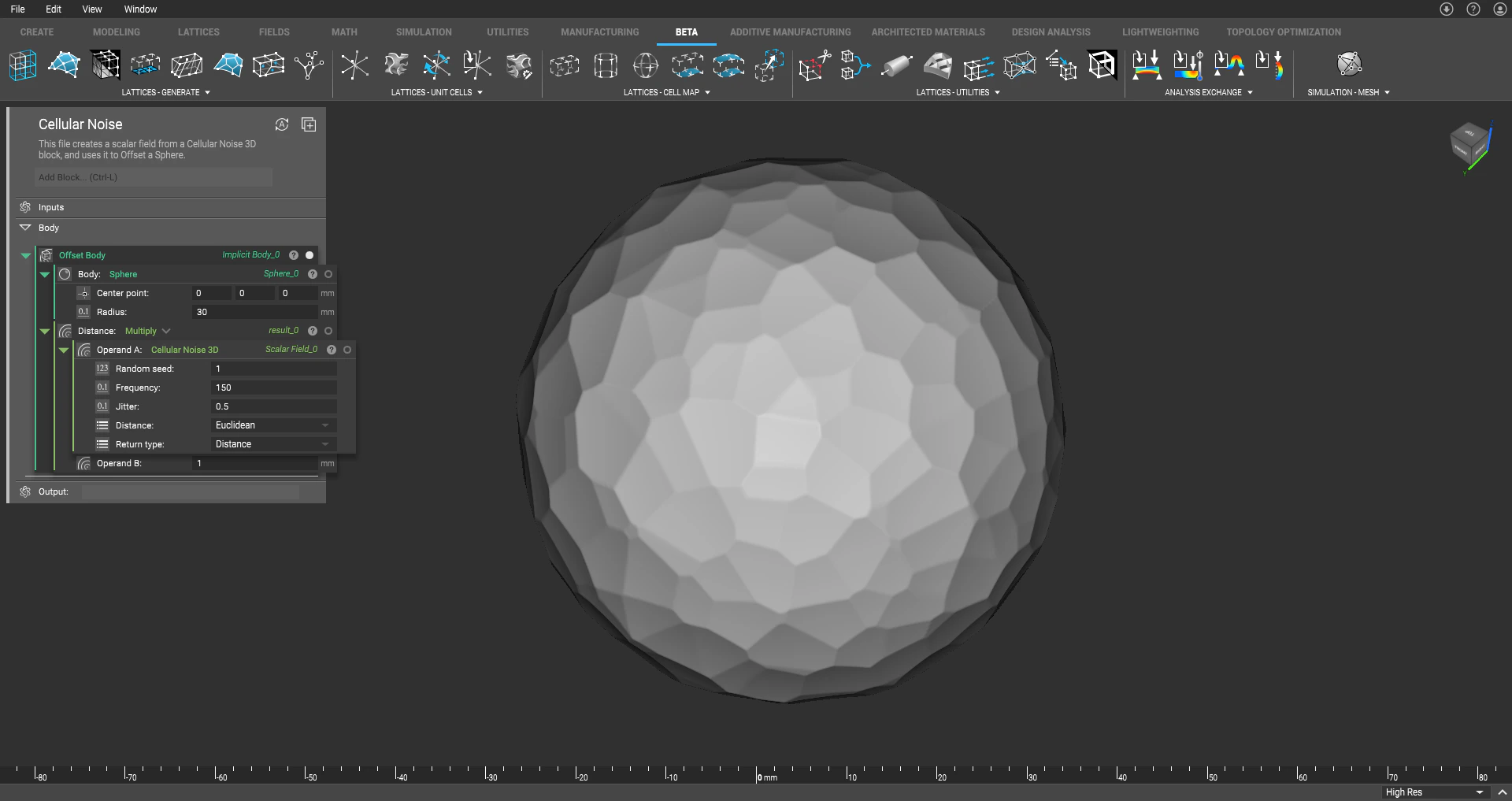

Download Example: Cellular Noise 3D This file creates a scalar field from a Cellular Noise 3D block, and uses it to Offset a Sphere.

Cellular Noise 3D

Create a cellular noise function.

Inputs

Name	Type	Description
Random seed	Integer	Random seed value.
Frequency	Scalar	Affects how coarse the noise output is.
Jitter	Scalar	Affects how regular the cells are.
Distance	Noise Distance Enum	Cellular distance function.
Return type	Noise Return Enum	How to return the distance to n points.

Outputs

Type
Scalar Field
