Surrogate, Text, 5.43.0
Text, Function Object, Parameter Group, 5.34.0
About this Block
What it does: A Dependent Parameter defines a relationship between variables by calculating its value from other parameters (commonly Independent and/or Constant Parameters, but can also form chains with additional Dependent Parameters) using a custom function. In a parameter optimization study, a dependent parameter is typically used to define the optimization objective and constraints. Other available parameters include the Independent Parameter, and Constant Parameter Common uses:- Inverse Design Optimization using Parameter Optimization
- Defining a design variable that is a complex mathematical expression of other variables.
- Linking multiple input parameters together through a single parameter to maintain a specific relationship between them.

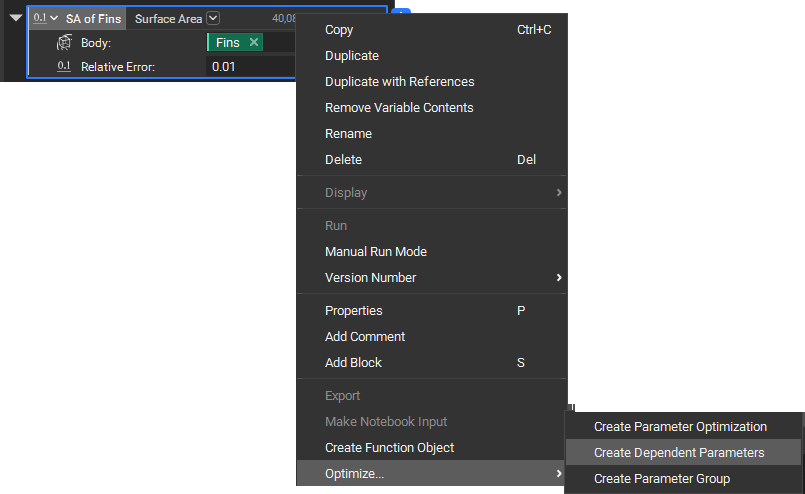

- The easiest way to create a Dependent Parameter is by right clicking on a block that defines the function you want to use as part of your optimization, and then selecting Optimize > Create Dependent Parameter.

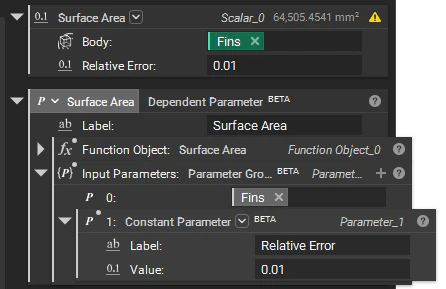

- You can connect dependent parameters to create a Chained Dependent Parameter by linking multiple dependent parameters.

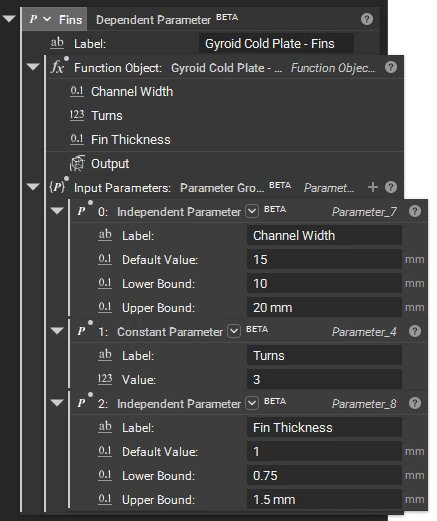

| Dependent Parameter 1 | Chained Parameter |
|---|---|
 |  |
Example File

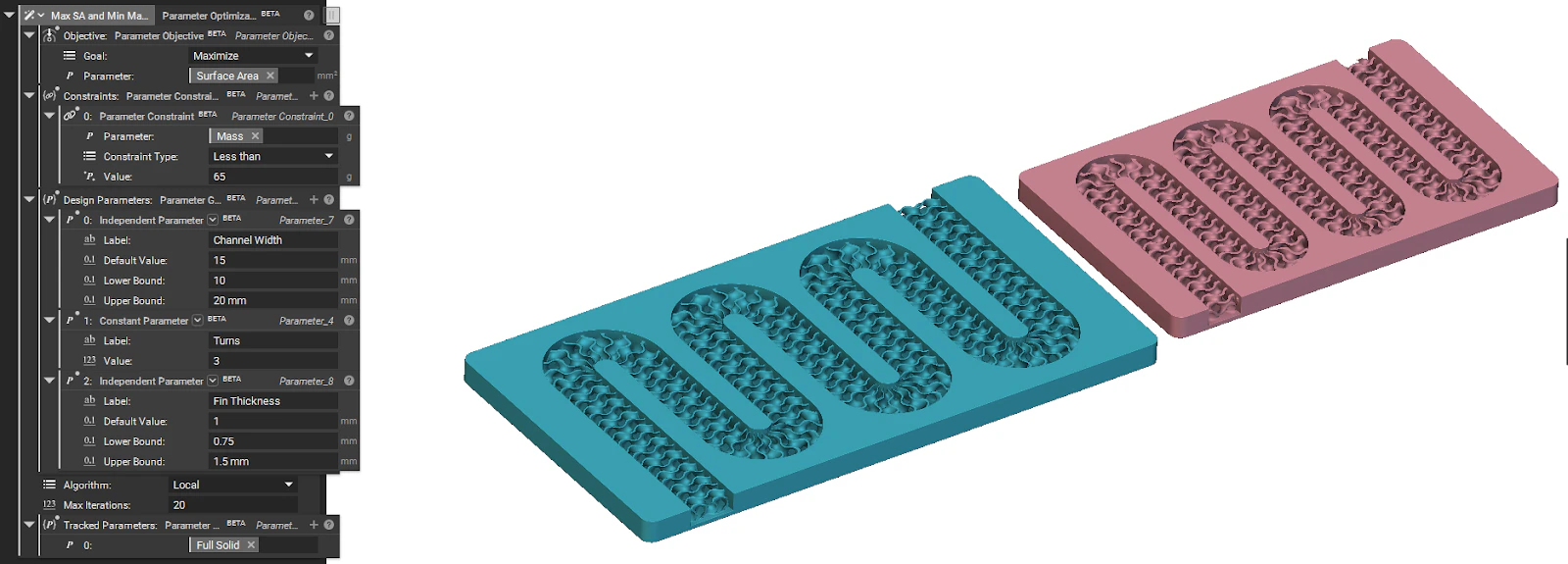

Download Example: Parameter Optimization
Surrogate, Text, 5.43.0
Creates a Dependent Parameter whose value is computed from other Parameters using a specified Surrogate. The value updates automatically whenever its input Parameters are changed by an evaluator.Inputs
| Name | Type | Description |
|---|---|---|
| Surrogate | Surrogate(real,samples(real)) | Surrogate model to evaluate. |
| Label | Text | Optional unique identifier for the output Parameter. |
Outputs
| Type |
|---|
| Parameter |
Text, Function Object, Parameter Group, 5.34.0
Creates a Dependent Parameter whose value is computed from other Parameters using a specified Function. The value updates automatically whenever its input Parameters are changed by an evaluator.Inputs
| Name | Type | Description |
|---|---|---|
| Label | Text | Unique identifier for the output Parameter. |
| Function object | Function Object | The Function Object evaluated to produce the output Parameter’s value. |
| Input parameters | Parameter Group | Parameters defining Function Object inputs. The group elements correspond to the Function Object inputs by index. |
Outputs
| Type |
|---|
| Parameter |
