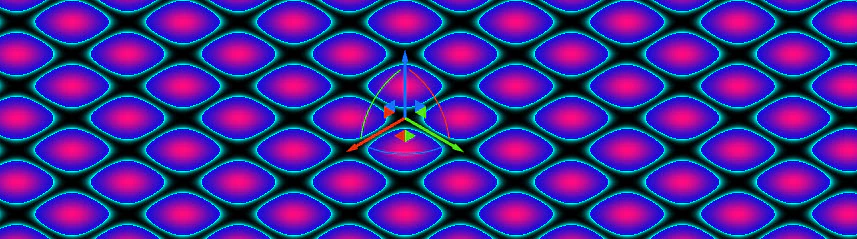

What it does: Creates an unbounded Scalar Field defined by a Neovius Triply Periodic Minimal Surface (TPMS). The following equation defines the field:
 3[cos(x) + cos(y) + cos(z)] + 4cos(x)cos(y)cos(z)= 0
The Cell size input specifies the size of the period for a single repetition in x, y, and z. The amplitude of the distance field scales from -1 to 1 through one period of the pattern. Common uses: Scalar Field input for a Ramp block.
Tips

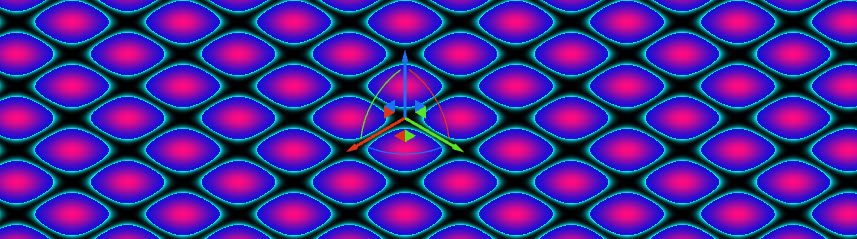

  • View the field by using the Field Viewer (hot-key f).
  • The values in the Neovius Field are unitless and do not represent an implicit body. Alternatively, the Neovius Body block creates a similar field with distance units and an approximate distance field.
SplitP Field Create an unbounded Scalar Field of a dimensionless Neovius periodic pattern, with values ranging from -1 to 1.

​
Inputs

NameTypeDescription
Cell sizeScalarSize of a single period of the neovius function. amplitude is normalized between -1 and +1.

​
Outputs

Type
Scalar Field
