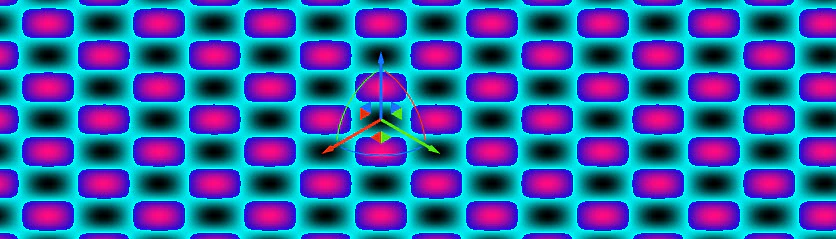

What it does: Creates an unbounded Scalar Field defined by a Schwarz Triply Periodic Minimal Surface (TPMS). The following equation defines the field:
cos(x) + cos(y) + cos(z) = 0
The Cell size input specifies the size of the period for a single repetition in x, y, and z. The amplitude of the distance field scales from -1 to 1 through one period of the pattern. Common uses: Scalar Field input for a Ramp block.
Tips

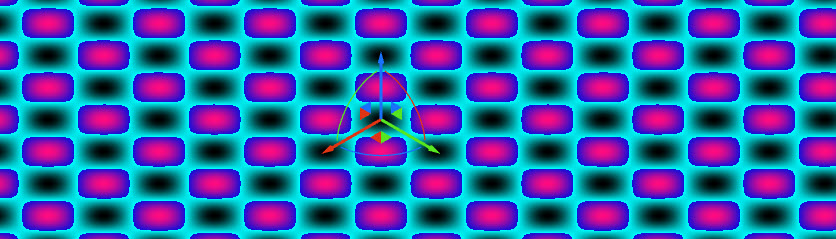

  • View the field by using the Field Viewer (hot-key f).
  • The values in the Schwarz Field are unitless and do not represent an implicit body. Alternatively, the Schwarz Body block creates a similar field with distance units and an approximate distance field.
Schwarz Field Create an unbounded Scalar Field of a dimensionless Schwarz periodic pattern, with values ranging from -1 to 1.

​
Inputs

NameTypeDescription
Cell sizeScalarSize of a single period of the schwarz function. amplitude is normalized between -1 and +1.

​
Outputs

Type
Scalar Field
