Point, Vector
Point, Vector, 1.1.0
About this Block

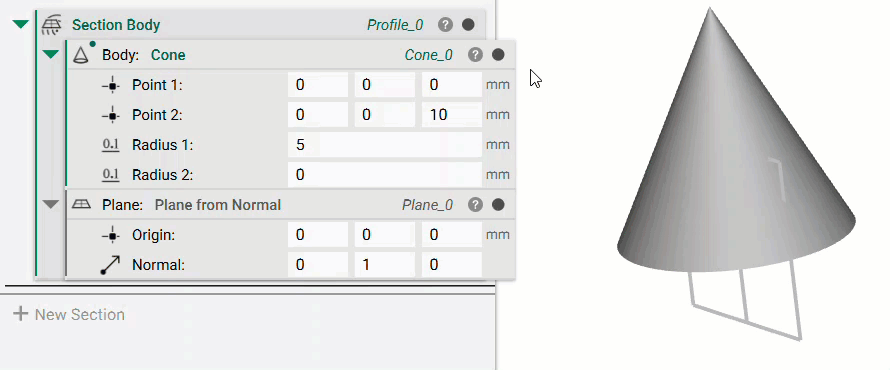

What it does: The Plane from Normal block creates a plane from an origin and a Vector normal direction. Common uses:- Section cuts
- Mirroring operations
- Ramps
- How to calculate surface area of a cross-section: (https://support.ntopology.com/hc/articles/360059905913)
- How to modify geometry using ramps: (https://support.ntopology.com/hc/articles/360042294794)
- How to mirror an implicit body: (https://support.ntopology.com/hc/articles/360056411314)
Example File
Point, Vector
Create a Plane from an origin and a Vector normal direction.Inputs
Outputs
| Type |
|---|
| Plane |
Point, Vector, 1.1.0
Create a Plane from an origin and a Vector normal direction.Inputs
Outputs
| Type |
|---|
| Plane |
