About this Block

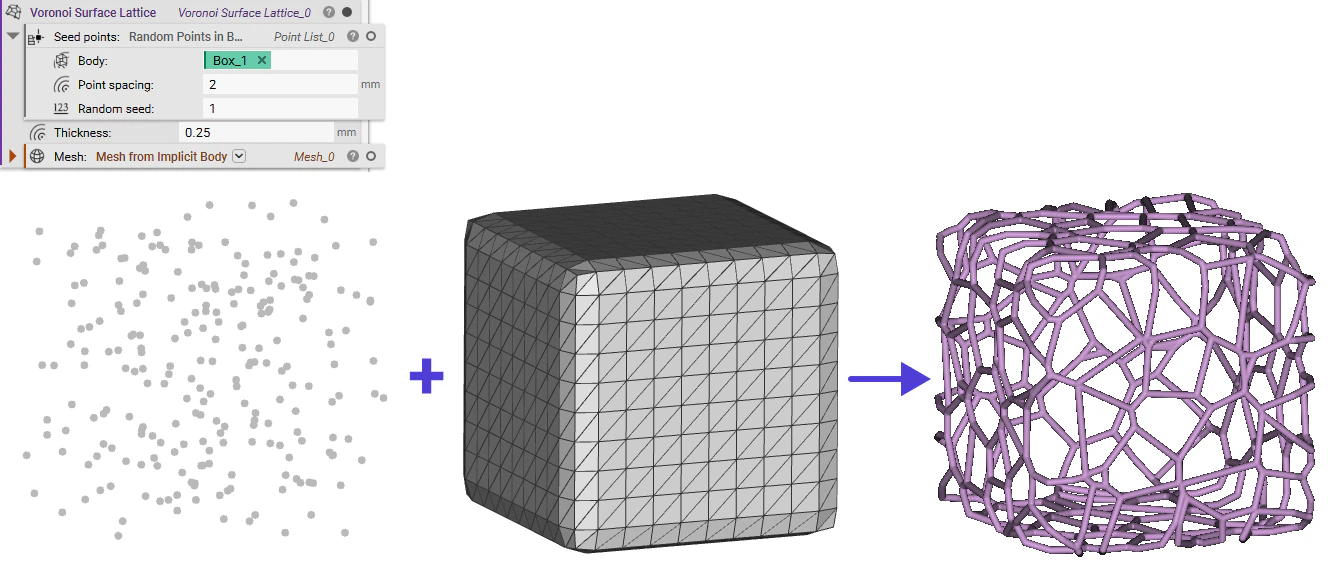

What it does: Creates a Lattice from the Voronoi diagram of a list of Seed points and a Surface Mesh. Tips:- Seed points not on the Mesh are not included in the Voronoi Surface Lattice.
- The blocks Random Points in Body or Random Points on Mesh help create seed points.
- The Thickness of the lattice is a Scalar Field type, which allows for a variable Thickness.
- Open up the block’s Properties Panel to view the beam, implicit, and thick graph properties.
- These properties are populated based on the type of Unit Cell you use. An error sign with a tooltip appears next to the property if it is empty.
Creates a Lattice from the Voronoi diagram of a list of Points restricted to the surface boundary of a body.
Inputs
| Name | Type | Description |
|---|---|---|
| Seed points | Point List | List of Points to generate the Voronoi Lattice from. |
| Thickness | Scalar Field | Lattice thickness. |
| Mesh | Mesh | Mesh to generate the Voronoi Lattice on. |
