Seed points, Scalar Field, Mesh
Seed points, Scalar Field, Mesh, 1.1.0
Seed points, Scalar Field, Mesh, 1.2.0
Seed points, Scalar Field, Volume Mesh
About this Block

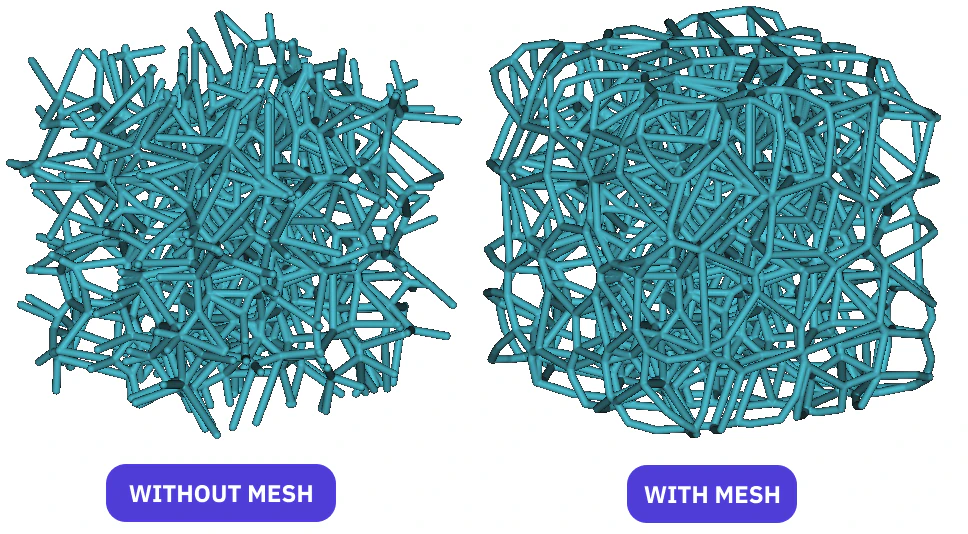

What it does: Creates a Lattice from the Voronoi diagram of a list of seed points within a specified volume.- The Mesh input is optional, however; supplying a mesh will slow down the operation. Seed points not within the Mesh are not included in the Voronoi Lattice.
- The block, Random Points in Body, is useful for creating seed points.
- The seed points can be varied by using a Scalar Field, such as a Ramp, in their Point spacing input.
- The Thickness of the lattice is a Scalar Field type, which allows for a variable Thickness.
- Open up the block’s Properties Panel to view the beam, implicit, and thick graph properties.
- These properties are populated based on the type of Unit Cell you use. An error sign with a tooltip appears next to the property if it is empty.
Seed points, Scalar Field, Mesh
Creates a Lattice from the Voronoi diagram of a list of Points within a volume.Inputs
| Name | Type | Description |
|---|---|---|
| Seed points | Point List | List of points to generate the voronoi lattice from. |
| Thickness | Scalar Field | Lattice thickness. |
| Mesh | Mesh | Mesh or volume mesh to generate the voronoi lattice within. providing a volume mesh will improve the speed of the operation. |
Outputs
Seed points, Scalar Field, Mesh, 1.1.0
Creates a Lattice from the Voronoi diagram of a list of Points within a volume.Inputs
| Name | Type | Description |
|---|---|---|
| Seed points | Point List | List of points from which to generate the voronoi cells of the lattice. |
| Thickness | Scalar Field | Lattice thickness. |
| Boundary | Mesh | An optional boundary on which to generate a conformal surface voronoi lattice. |
Outputs
Seed points, Scalar Field, Mesh, 1.2.0
Creates a Lattice from the Voronoi diagram of a list of Points within a volume.Inputs
| Name | Type | Description |
|---|---|---|
| Seed points | Point List | List of points from which to generate the voronoi cells of the lattice. |
| Thickness | Scalar Field | Lattice thickness. |
| Boundary | Mesh | An optional boundary on which to generate a conformal surface voronoi lattice. |
Outputs
Seed points, Scalar Field, Volume Mesh
Creates a Lattice from the Voronoi diagram of a list of Points within a volume.Inputs
| Name | Type | Description |
|---|---|---|
| Seed points | Point List | List of points to generate the voronoi lattice from. |
| Thickness | Scalar Field | Lattice thickness. |
| Mesh | Volume Mesh | Mesh or volume mesh to generate the voronoi lattice within. providing a volume mesh will improve the speed of the operation. |
