Implicit Body, Curvature Enum
Mesh, Curvature Enum, 1.1.0
About this Block

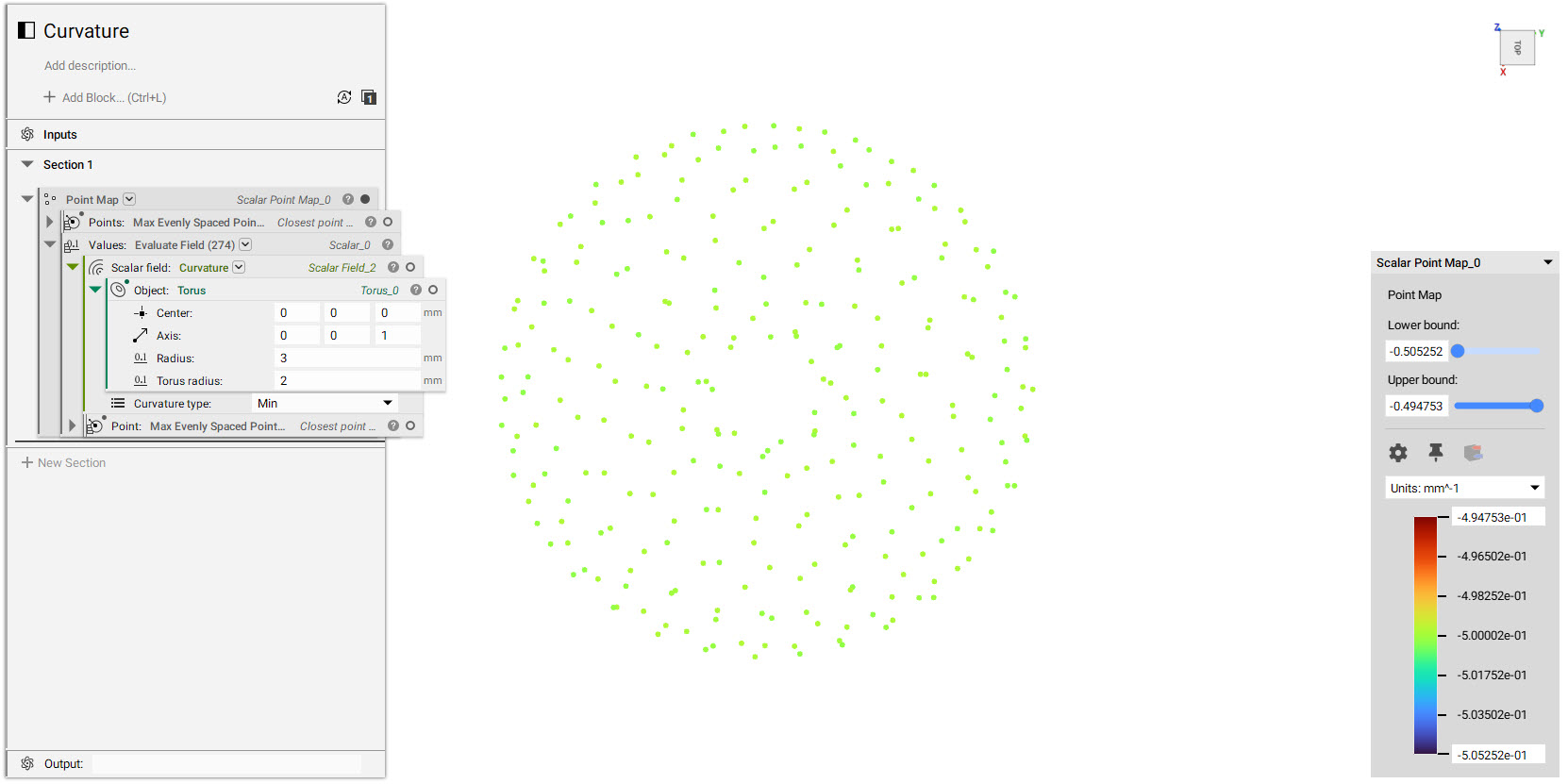

What it does: The Curvature block creates a scalar field of the curvature values of an input implicit body or mesh. Curvature measures how quickly a curve is changing direction at a certain point.Example File
Implicit Body, Curvature Enum
Create a Scalar Field of the curvature values of an Implicit Body or a surface Mesh.Inputs
| Name | Type | Description |
|---|---|---|
| Object | Implicit Body | Object to extract curvature values from. |
| Curvature type | Curvature Enum | Type of curvature to extract from object. |
Outputs
| Type |
|---|
| Scalar Field |
Mesh, Curvature Enum, 1.1.0
Create a Scalar Field of the curvature values of an Implicit Body or a surface Mesh.Inputs
| Name | Type | Description |
|---|---|---|
| Object | Mesh | Object to extract curvature values from. |
| Curvature type | Curvature Enum | Type of curvature to extract from object. |
Outputs
| Type |
|---|
| Scalar Field |
