Implicit Body, Scalar Field, Scalar, 1.1.0
Mesh, Scalar, 2.1.0
About this Block
What it does: The Mass Properties block calculates the following properties of a surface mesh or an implicit body: Center of Gravity, Mass, Principal Moments, and Volume. The results can be found in the Properties tab of the Information Panel. The block performs a series of volume integrations to obtain its results. Tips:- The density input must be a constant for this block.
- If only the center of gravity or volume results are needed, any density input above zero can be used, and those calculations will still be accurate.
Example File

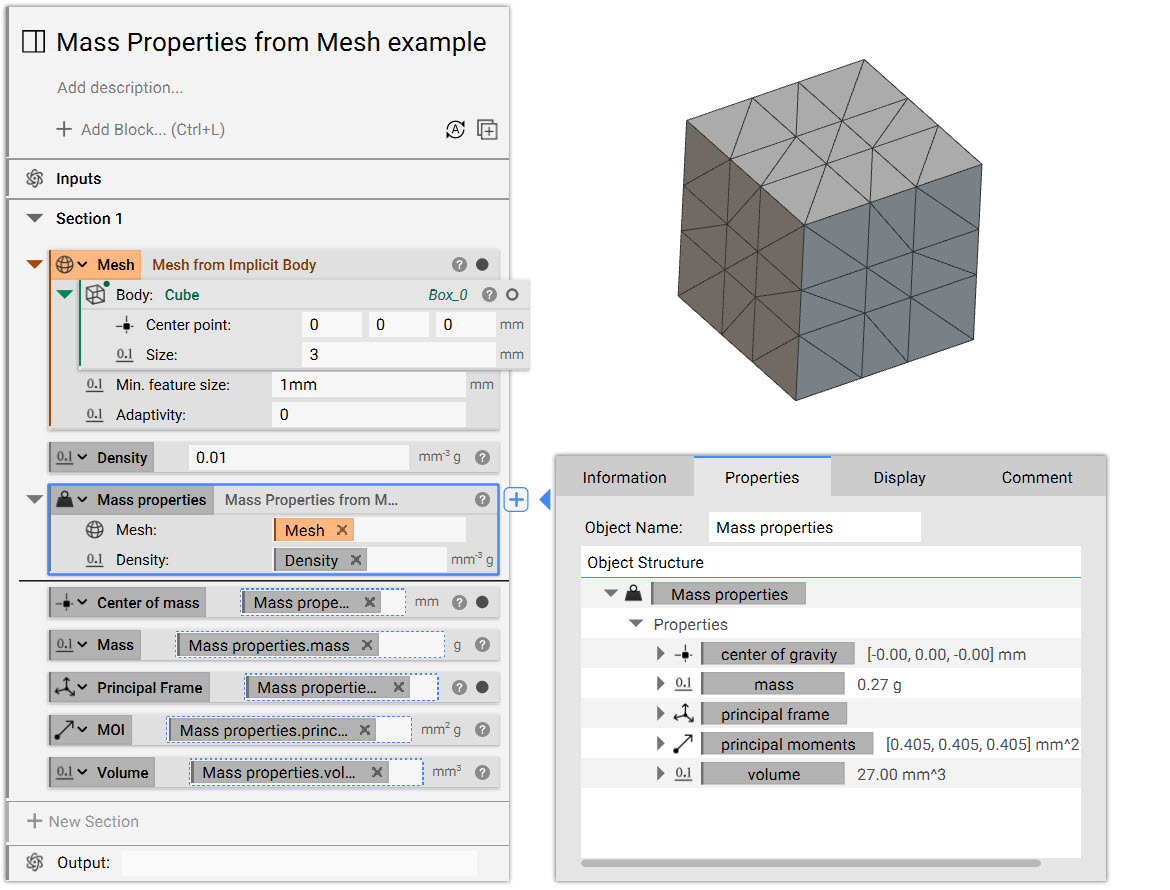

Download Example: Mass Properties from Mesh
Implicit Body, Scalar Field, Scalar, 1.1.0
Calculate the mass properties of an implicit body.Inputs
| Name | Type | Description |
|---|---|---|
| Body | Implicit Body | Implicit body to calculate the properties of. |
| Density | Scalar Field | Material density of the body. |
| Relative error | Scalar | Relative error used to determine algorithm convergence. |
Outputs
| Type |
|---|
| Mass properties |
About this Block
What it does: The Mass Properties block calculates the following properties of a surface mesh or an implicit body: Center of Gravity, Mass, Principal Moments, and Volume. The results can be found in the Properties tab of the Information Panel. The block performs a series of volume integrations to obtain its results. Tips:- The density input must be a constant for this block.
- If only the center of gravity or volume results are needed, any density input above zero can be used, and those calculations will still be accurate.
Example File
Download Example: Mass Properties from Mesh
Mesh, Scalar, 2.1.0
Calculate Mass Properties from a Mesh.Inputs
Outputs
| Type |
|---|
| Mass properties |
