Curve (old), Scalar Field, Scalar
Curve, Scalar Field, Scalar, 5.20.0
About this Block
What it does: The Curve Integral block integrates the values of a Scalar Field along a curve. Common uses:- Calculate length

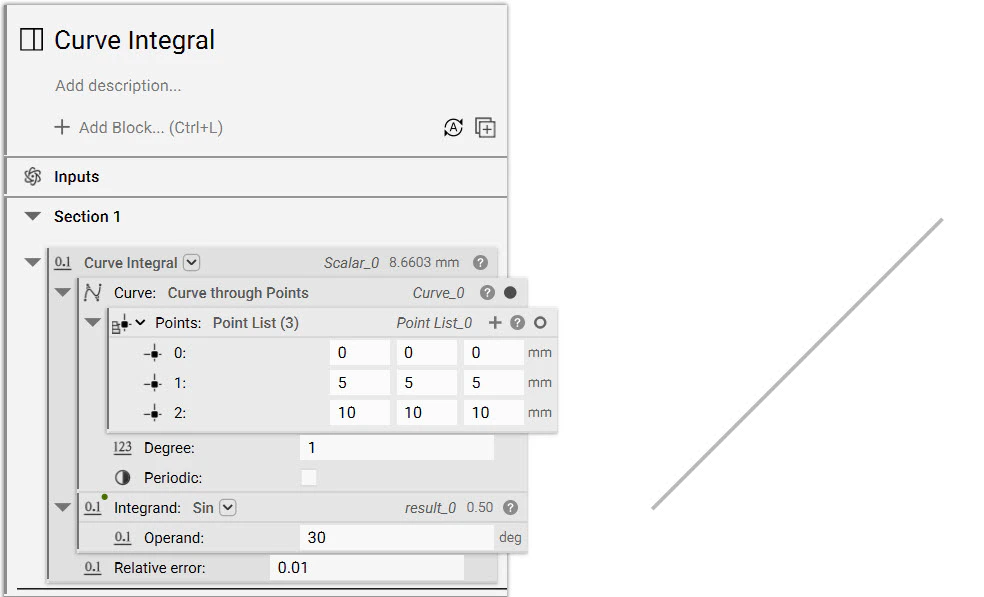

Example File
Curve (old), Scalar Field, Scalar
Integrate a Scalar Field along a curve.Inputs
| Name | Type | Description |
|---|---|---|
| Curve | Curve (old) | The curve to integrate along. |
| Integrand | Scalar Field | The function that will be integrated. |
| Relative error | Scalar | The relative error used to determine algorithm convergence. |
Outputs
| Type |
|---|
| Scalar |
Curve, Scalar Field, Scalar, 5.20.0
Integrate a Scalar Field along a curve.Inputs
| Name | Type | Description |
|---|---|---|
| Curve | Curve | The curve to integrate along. |
| Integrand | Scalar Field | The function that will be integrated. |
| Relative error | Scalar | The relative error used to determine algorithm convergence. |
Outputs
| Type |
|---|
| Scalar |
