Points
Points, 5.20.0
About this Block

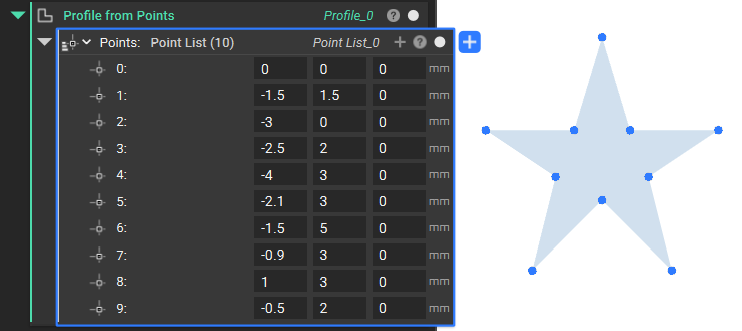

What it does: The Profile from Points block creates a profile from planar points. The order of the points is essential when entering them. Common uses:- Custom profiles for lofting, extruding, sweeping, etc.
Example File
Points
Create a polygon from planar points.Inputs
| Name | Type | Description |
|---|---|---|
| Points | Point List | Ordered list of points. Points of polygon must be planar. |
Outputs
| Type |
|---|
| Polygon (old) |
Points, 5.20.0
Create a closed Profile from an ordered list of points.Inputs
| Name | Type | Description |
|---|---|---|
| Points | Point List | An ordered list of points representing the vertices of the Profile. |
Outputs
| Type |
|---|
| Profile |
