Points, Integer, Bool, 5.20.0
Points, Integer, Bool, Vector, Vector, 5.28.0
About this Block
What it does: The Spline through Points block creates a spline from a list of points. The order of points in this list determine how the spline passes through them. The spline travels from point to point, so the order will greatly affect the output curve. Common uses:- Input for Sweep Profile
- Creating Profiles

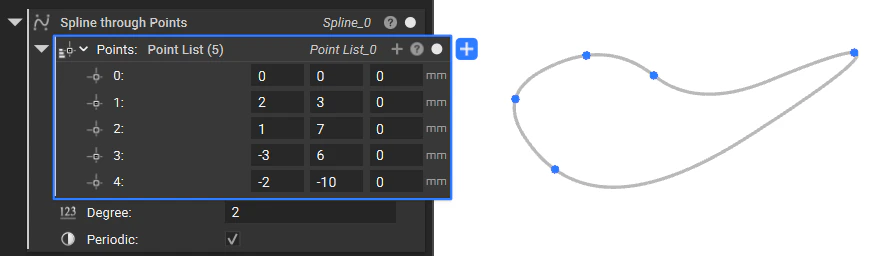

Example Image
Points, Integer, Bool, 5.20.0
Create a Spline that passes through multiple points.Inputs
| Name | Type | Description |
|---|---|---|
| Points | Point List | Ordered list of points to pass the curve through. Curve will be closed if start and end point are the same. |
| Degree | Integer | Degree of the spline. |
| Periodic | Bool | Make the spline periodic. This will close the curve even if the start and end point are not the same. |
Outputs
| Type |
|---|
| Spline |
Points, Integer, Bool, Vector, Vector, 5.28.0
Create a Spline that passes through multiple points.Inputs
| Name | Type | Description |
|---|---|---|
| Points | Point List | Ordered list of points to pass the curve through. Curve will be closed if start and end point are the same. |
| Degree | Integer | Degree of the spline. |
| Periodic | Bool | Make the spline periodic. This will close the spline even if the start and end point are not the same. If both the start tangent and end tangent inputs are not specified, the spline’s start and end tangent will be made the same. |
| Start tangent | Vector | Optional tangent vector of the spline at the start point. The magnitude of this value will determine the distance to the adjacent control point. |
| End tangent | Vector | Optional tangent vector of the spline at the end point. The magnitude of this value will determine the distance to the adjacent control point. |
Outputs
| Type |
|---|
| Spline |
