About this Block

What it does: Uses a Remap function to change the size of a Scalar Field according to X, Y, Z scales. Common uses: To non-uniformly scale a field.
Tips
  • All Remap-based functions are centered on the world origin.
  • This block is a custom block, which means it has a workflow of blocks running within it. To see what processes it is running, export the block by right-clicking on it and selecting “Export Block”. Open the block to see the workflow beneath.

​
Example File

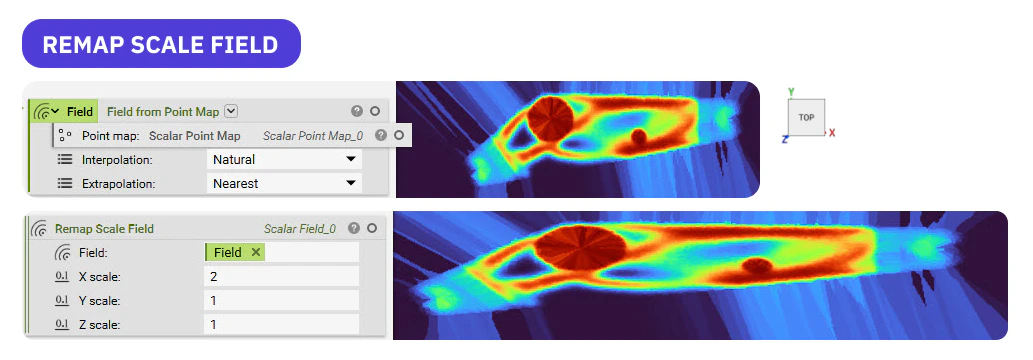

Download Example: Remap Scale Field Example Screenshot Remap a scalar field to scale it in the X, Y, and Z directions. This block will not attempt to scale the field values to compensate for distortion. If the compensation is preferred, use the Remap Scale Body block.

​
Inputs

NameTypeDescription
FieldScalar FieldScalar field to remap.
X scaleScalarScale factor in the x direction.
Y scaleScalarScale factor in the y direction.
Z scaleScalarScale factor in the z direction.

​
Outputs

Type
Scalar Field
