CFD Analysis Result, Integer
Thermal Result, Integer
Thermal Result, Integer, 2.0.0
About this Block

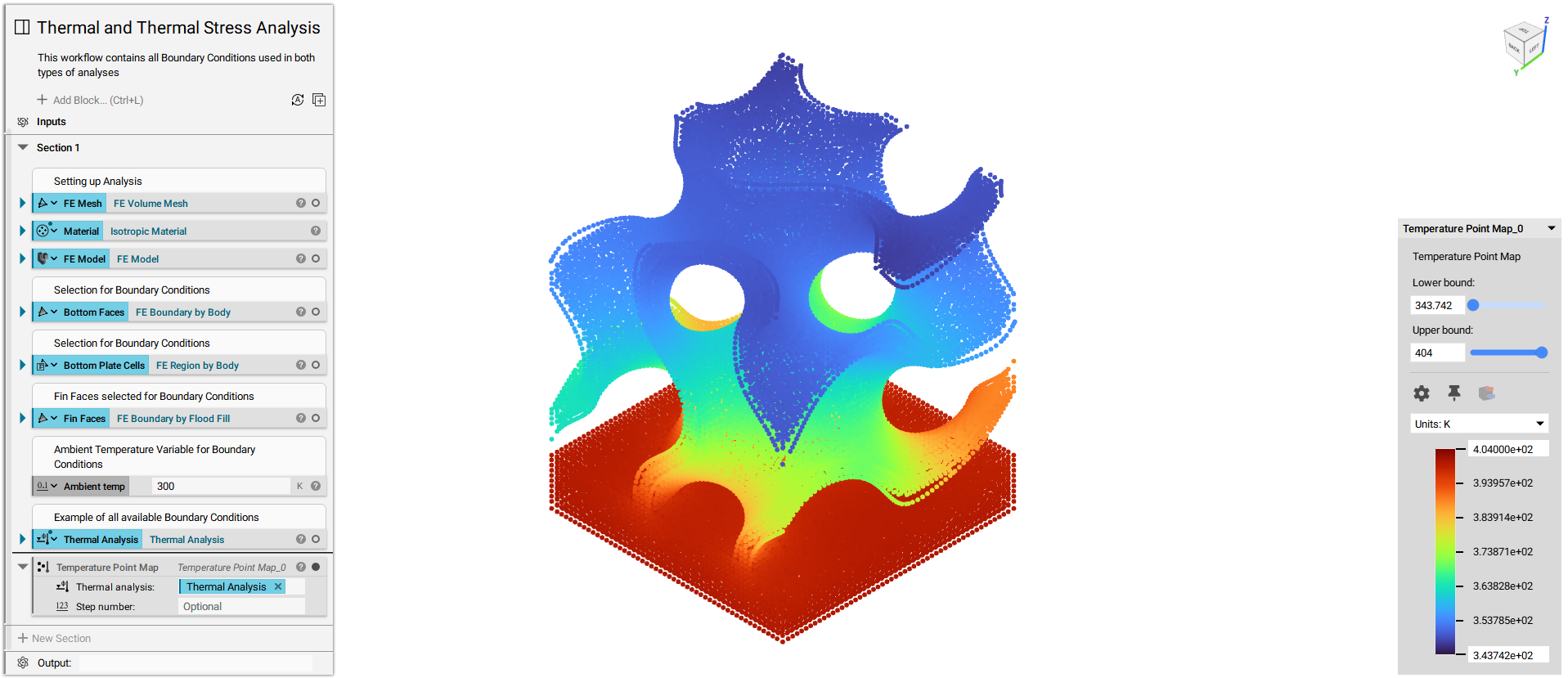

What it does: The Temperature Point Map block generates a Scalar Point Map of nodal temperatures from thermal analysis results. Common uses:- Can visualize thermal analysis results.
Example File
Download Example: Temperature Point Map
CFD Analysis Result, Integer
Create a Temperature Point Map from the temperature values of a CFD analysis.Inputs
| Name | Type | Description |
|---|---|---|
| Cfd analysis | CFD Analysis Result | Thermal point map for this result |
| Step number | Integer | The step number for which the point map will be created. the last step is used by default. |
Outputs
Thermal Result, Integer
Create a Scalar Point Map from nodal temperature values of a steady state thermal analysis.Inputs
| Name | Type | Description |
|---|---|---|
| Thermal analysis | Thermal Result | Thermal point map for this result |
| Step number | Integer | The step number for which the point map will be created. the last step is used by default. |
Outputs
| Type |
|---|
| Scalar Point Map |
Thermal Result, Integer, 2.0.0
Create a Temperature Point Map from nodal temperature values of a steady state thermal analysis.Inputs
| Name | Type | Description |
|---|---|---|
| Thermal analysis | Thermal Result | Thermal point map for this result |
| Step number | Integer | The step number for which the point map will be created. the last step is used by default. |
