Static Structural Result, Integer
Time Dependent Structural Result, Integer
About this Block

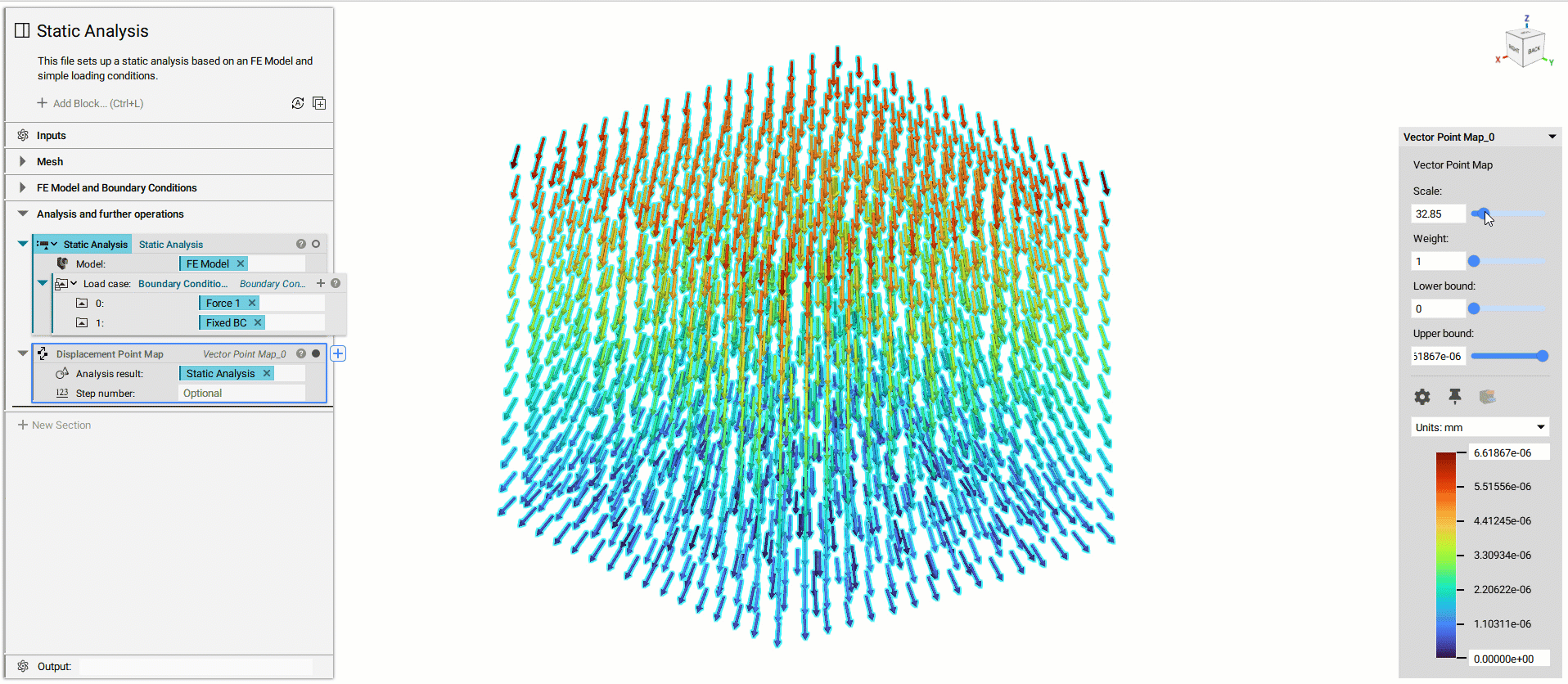

What it does: The Displacement Point Map block generates a Vector Point Map of nodal displacements from the static structural simulation results. Common uses:- Can visualize structural results.
- The point map consists of all the nodal points from the Static Structural Analysis, and the displacement values associated with each of those points. These points and values are * accessible in the properties of the Point Map.
- The HUD can be used to change the Scale, Weight, Lower bound, Upper bound, color palette and units as required.
- The point map can be exported with the Export Point Map block.
Example File
Download Example: Displacement Point Map
Static Structural Result, Integer
Create a Vector Point Map from nodal displacements of a Static or Explicit Analysis result.Inputs
| Name | Type | Description |
|---|---|---|
| Analysis result | Static Structural Result | Displacement point map for this result |
| Step number | Integer | The step number for which the point map will be created. The last step is used by default. |
Outputs
| Type |
|---|
| Vector Point Map |
Time Dependent Structural Result, Integer
Create a Vector Point Map from nodal displacements of a Static or Explicit Analysis result.Inputs
| Name | Type | Description |
|---|---|---|
| Analysis result | Time Dependent Structural Result | Displacement point map for this result |
| Step number | Integer | The step number for which the point map will be created. The last step is used by default. |
Outputs
| Type |
|---|
| Vector Point Map |
