Static Structural Result, Integer

Static Structural Result, Integer, 1.1.0

Time Dependent Structural Result, Integer

Time Dependent Structural Result, Integer, 1.1.0

​
About this Block

What it does: The Von Mises Stress Point Map block generates a Scalar Point Map of von Mises stress from the static structural simulation results. Common uses:
  • Can visualize structural results.
  • The point map consists of all the nodal points from the Static Analysis, and the stress values associated with each of those points. These points and values are accessible in the properties of the Point Map.
  • The HUD can be used to change the Lower bound, Upper bound color palette and units as required.
  • The point map can be exported with the Export Point Map block.

​
Example File

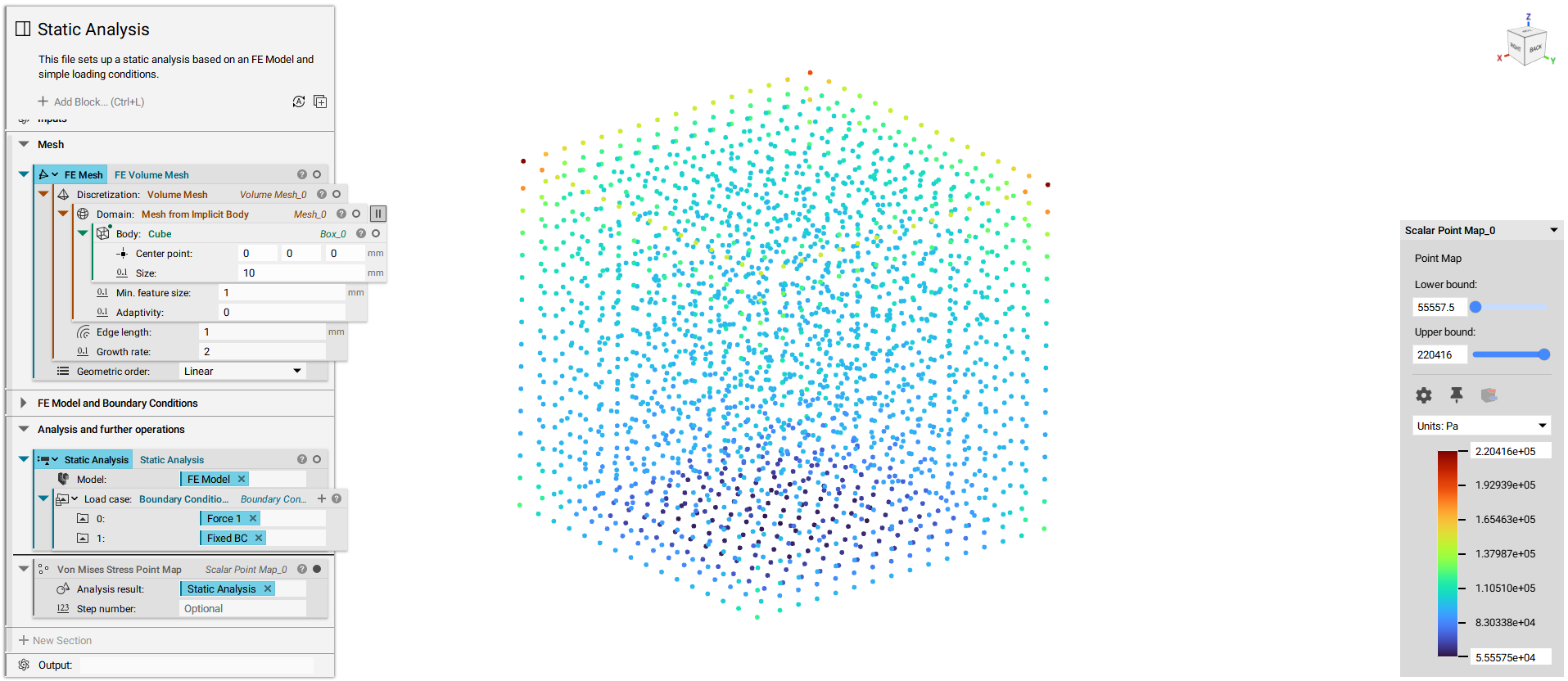

Download Example: Stress_Point_Map Stress Point Map

​
Static Structural Result, Integer

Create a Scalar Point Map from nodal von Mises stress values of a Static or Explicit Analysis.

​
Inputs

NameTypeDescription
Analysis resultStatic Structural ResultVon mises stress point map for this result
Step numberIntegerThe step number for which the point map will be created. the last step is used by default.

​
Outputs

Type
Scalar Point Map

​
Static Structural Result, Integer, 1.1.0

Create a Scalar Point Map from nodal von Mises stress values of a Static or Explicit Analysis.

​
Inputs

NameTypeDescription
Analysis resultStatic Structural ResultVon mises stress point map for this result
Step numberIntegerThe step number for which the point map will be created. the last step is used by default.

​
Outputs

Type
Scalar Point Map

​
Time Dependent Structural Result, Integer

Create a Scalar Point Map from nodal von Mises stress values of a Static or Explicit Analysis.

​
Inputs

NameTypeDescription
Analysis resultTime Dependent Structural ResultVon mises stress point map for this result
Step numberIntegerThe step number for which the point map will be created. the last step is used by default.

​
Outputs

Type
Scalar Point Map

​
Time Dependent Structural Result, Integer, 1.1.0

Create a Scalar Point Map from nodal von Mises stress values of a Static or Explicit Analysis.

​
Inputs

NameTypeDescription
Analysis resultTime Dependent Structural ResultVon mises stress point map for this result
Step numberIntegerThe step number for which the point map will be created. the last step is used by default.

​
Outputs

Type
Scalar Point Map
