Boundary, Boundary, Scalar Field, Scalar

CAD Face, CAD Face, Scalar Field, Scalar

​
Boundary, Boundary, Scalar Field, Scalar

Creates a bonded contact between two boundaries which allows for heat flux between the two domains. A contact resistance can be defined to account for thin membrane material at the boundary such as thermal paste.

​
Inputs

NameTypeDescription
IndependentBoundaryThe independent boundary.
DependentBoundaryThe dependent boundary.
ResistanceScalar FieldThermal resistance of the contact elements.
RadiusScalarPositional tolerance for dependent boundary relative to the independent boundary. nodes in the dependent boundary beyond this tolerance will not be constrained to the independent boundary.

​
Outputs

Type
Connector

​
About this Block

What it does: This block creates a bonded contact between two FE boundaries, allowing for heat flux between the two components. Common uses:
  • Domains of two regions do not necessarily share common nodes and element faces; it is necessary to “tie” these two regions together mathematically and couple them mechanically.
Tips:
  • Contact resistance can be defined to account for thin membrane material at the boundary, such as thermal paste.
  • The thermal contact resistance between two materials is often calculated from experimental tests of contact conductance, and the values can be found in thermal conductivity tables.
  • If boundary entities can’t be found within the defined tolerance, try refining the FE Mesh or increasing the tolerance to effectively capture the connection between the two boundaries

​
Example File

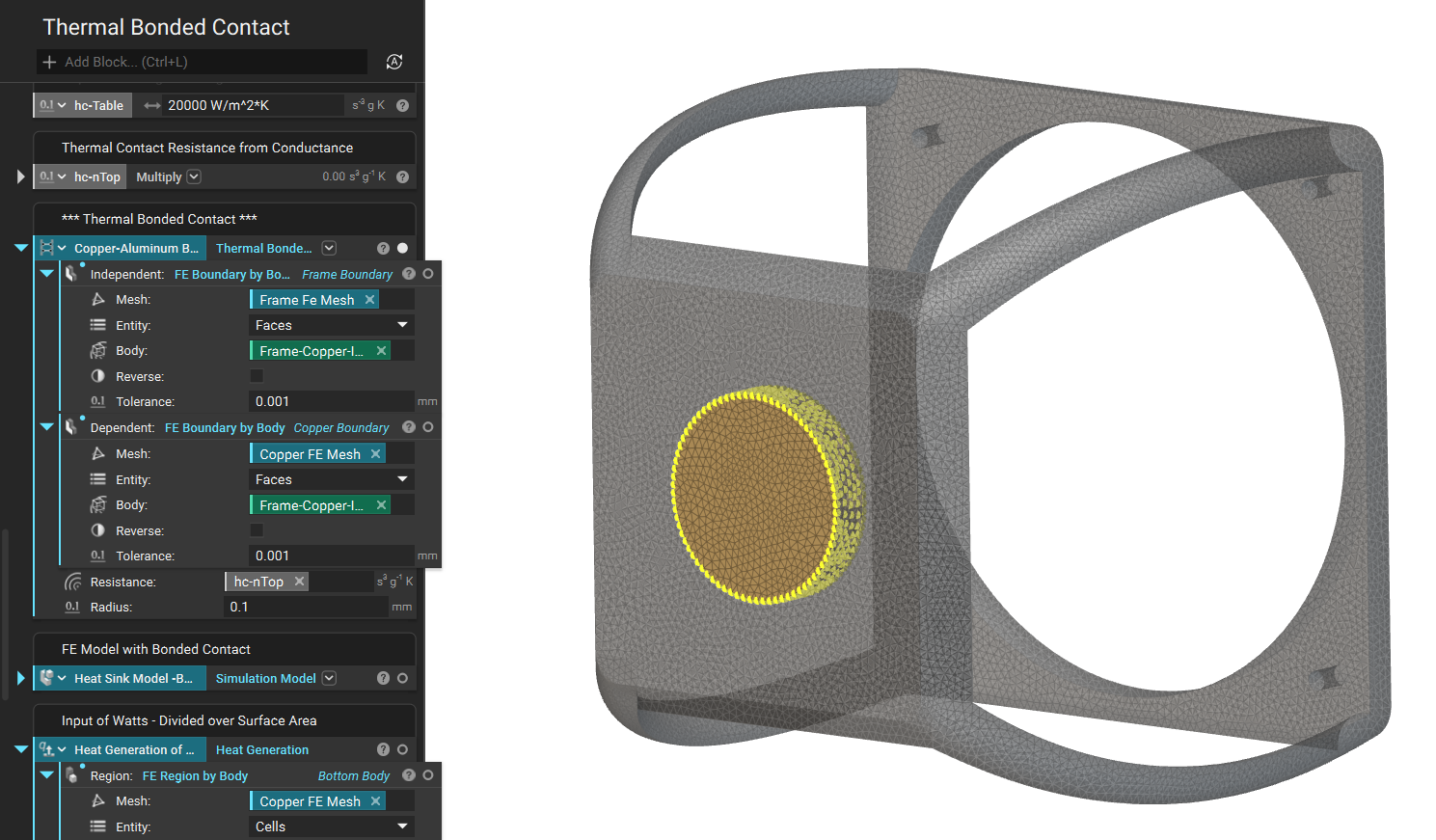

Download Example: Thermal Contact Example Screenshot

​
CAD Face, CAD Face, Scalar Field, Scalar

Creates a bonded contact between two CAD faces which allows for heat flux between the two domains. A contact resistance can be defined to account for thin membrane material at the boundary such as thermal paste.

​
Inputs

NameTypeDescription
IndependentCAD FaceThe cad face defining the independent boundary.
DependentCAD FaceThe cad face defining the dependent boundary.
ResistanceScalar FieldThermal resistance of the contact elements.
RadiusScalarPositional tolerance for dependent boundary relative to the independent boundary. nodes in the dependent boundary beyond this tolerance will not be constrained to the independent boundary.

​
Outputs

Type
Connector
