About this Block

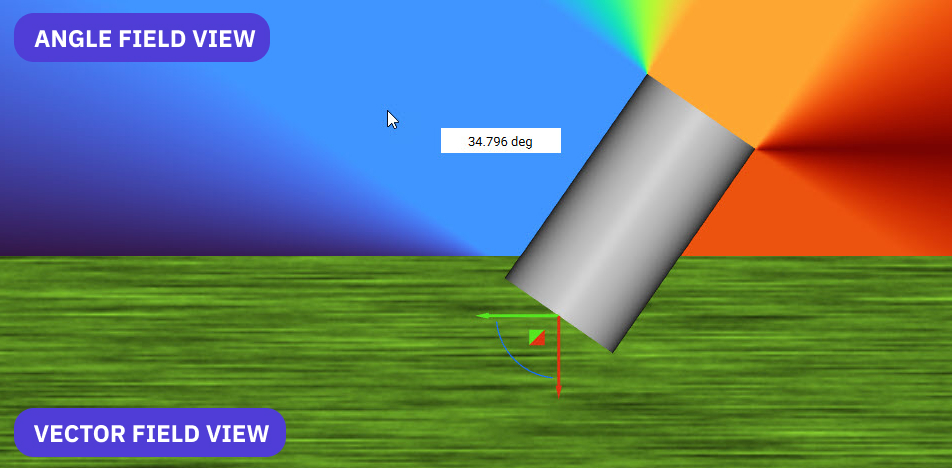

What it does: Creates an angle field from an Implicit Body and a vector input to help you determine if your model needs support structures. Common uses:- Visualizing overhang angles and determining the need for support structures for additive manufacturing.
- Combine with the Overhang Constraint block in topology optimization.
Example File
Download Example: Angle Field
Generates a field that indicates angle with respect to a direction.
Inputs
| Name | Type | Description |
|---|---|---|
| Body | Implicit Body | Implicit body to detect the angle with respect to the direction. |
| Direction | Vector | Vector that corresponds to the direction. |
Outputs
| Type |
|---|
| Scalar Field |
