Scalar Point Map, Point Cloud Interpolation Enum (old), Point Cloud Extrapolation Enum
Scalar Point Map, Point Cloud Interpolation Enum, 1.1.0
Temperature Point Map, Point Cloud Interpolation Enum (old), Point Cloud Extrapolation Enum
Temperature Point Map, Point Cloud Interpolation Enum, 1.1.0
Vector Point Map, Point Cloud Interpolation Enum (old), Point Cloud Extrapolation Enum
Vector Point Map, Point Cloud Interpolation Enum, 1.1.0
About this Block
What it does: Creates a field interpolated from Point Map data. The block creates a Scalar Field from an imported Scalar Point Map, or a Vector Field from a Vector Point Map. Common uses:- Converting simulation results into a field (which enables you to edit your part with the simulation results).

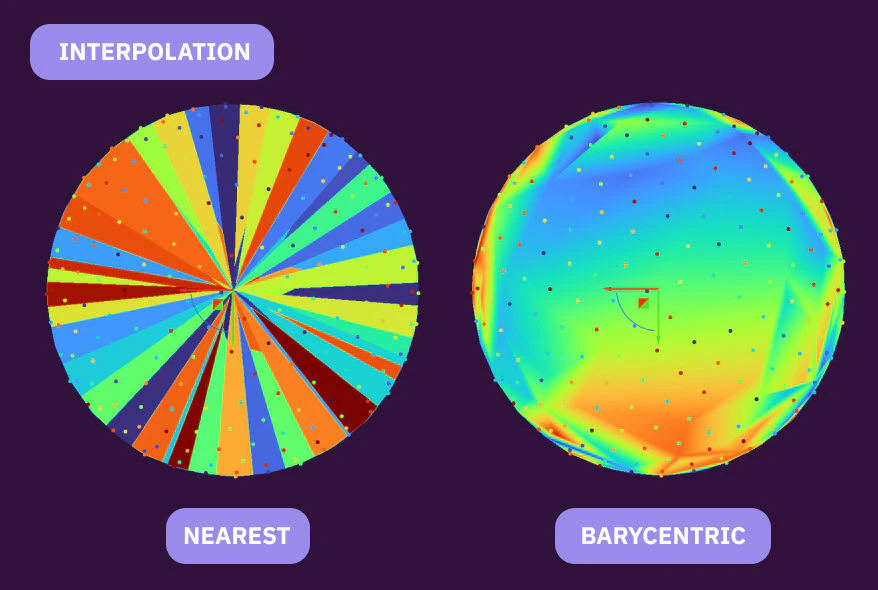

- Linear: Values in between points are linearly scaled from the values of the nearest points.
- Natural: Values in between points are scaled while considering the nearest points and points further out, to smoothen out the interpolation.
- Nearest: Values maintain the exact value of the nearest point.
- Barycentric: Values are interpolated linearly from the three closest points, which define a tetrahedral. This method is recommended for point maps extracted from tetrahedral mesh, like Von Mises Stress Point Map or Temperature Point Map.
- Nearest: Values match the values at the end of the extrapolation region and extend outward with that value.
- Linear: Values scale outward from the trend of values of the field as it reaches the extrapolation region.
- Exponential: Values scale outward while considering the trend of multiple points sampled inward into the interpolation region.
- None: Outside of the interpolation region, the values are set to zero.

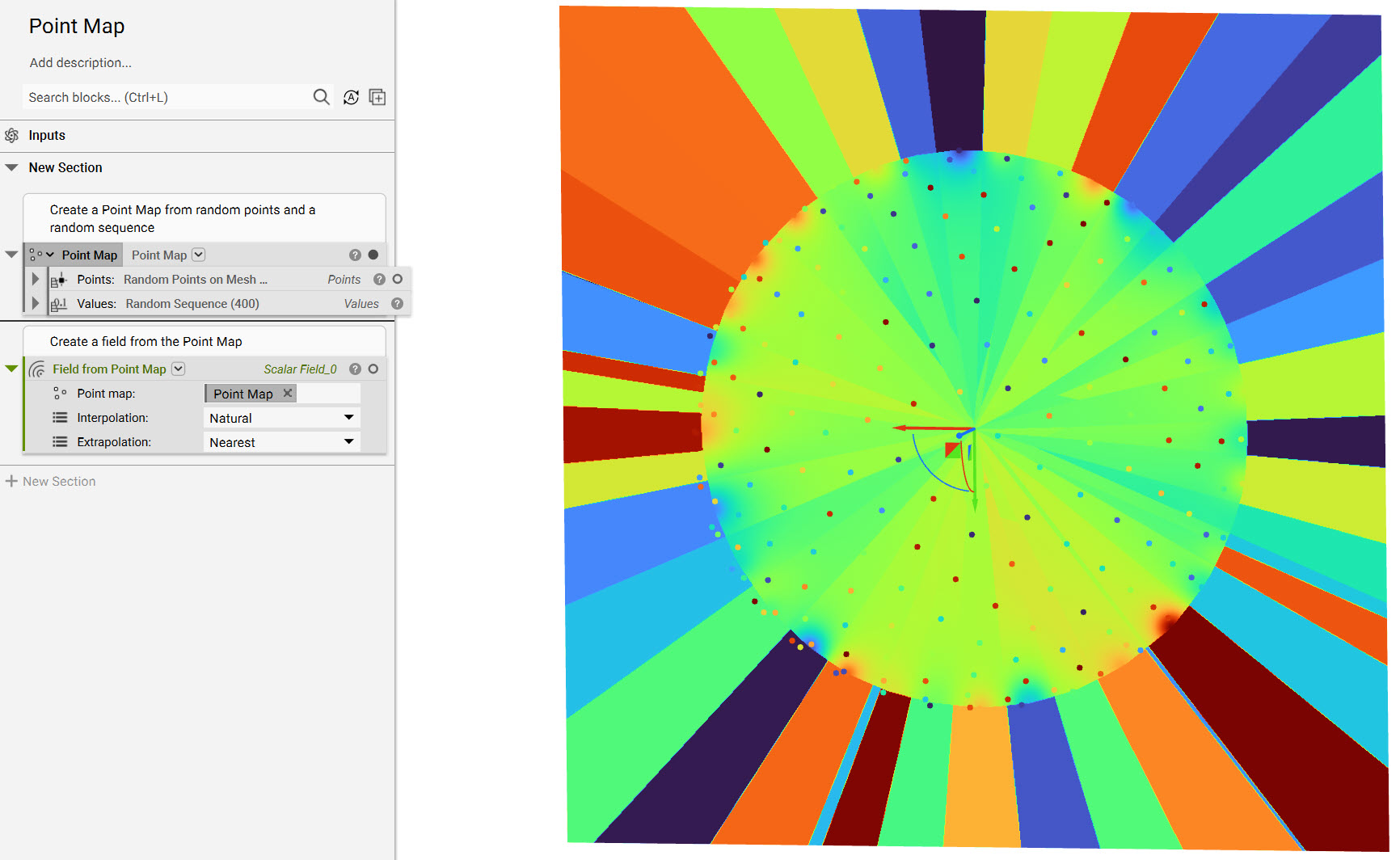

Example File
Download Example: Field from Point Map
Scalar Point Map, Point Cloud Interpolation Enum (old), Point Cloud Extrapolation Enum
Create a Scalar Field from a map of points and value data.Inputs
| Name | Type | Description |
|---|---|---|
| Point map | Scalar Point Map | Map of points list and values |
| Interpolation | Point Cloud Interpolation Enum (old) | Interpolation method |
| Extrapolation | Point Cloud Extrapolation Enum | Extrapolation method |
Outputs
| Type |
|---|
| Scalar Field |
Scalar Point Map, Point Cloud Interpolation Enum, 1.1.0
Create a Scalar Field from a map of points and value data.Inputs
| Name | Type | Description |
|---|---|---|
| Point map | Scalar Point Map | Map of points list and values |
| Interpolation | Point Cloud Interpolation Enum | Interpolation method |
Outputs
| Type |
|---|
| Scalar Field |
Temperature Point Map, Point Cloud Interpolation Enum (old), Point Cloud Extrapolation Enum
Create a Temperature Field from a map of points and value data.Inputs
| Name | Type | Description |
|---|---|---|
| Point map | Temperature Point Map | Map of points list and values |
| Interpolation | Point Cloud Interpolation Enum (old) | Interpolation method |
| Extrapolation | Point Cloud Extrapolation Enum | Extrapolation method |
Outputs
Temperature Point Map, Point Cloud Interpolation Enum, 1.1.0
Create a Temperature Field from a map of points and value data.Inputs
| Name | Type | Description |
|---|---|---|
| Point map | Temperature Point Map | Map of points list and values |
| Interpolation | Point Cloud Interpolation Enum | Interpolation method |
Outputs
Vector Point Map, Point Cloud Interpolation Enum (old), Point Cloud Extrapolation Enum
Create a Vector Field from a map of points and value data.Inputs
| Name | Type | Description |
|---|---|---|
| Point map | Vector Point Map | Map of points list and values |
| Interpolation | Point Cloud Interpolation Enum (old) | Interpolation method |
| Extrapolation | Point Cloud Extrapolation Enum | Extrapolation method |
Outputs
| Type |
|---|
| Vector Field |
Vector Point Map, Point Cloud Interpolation Enum, 1.1.0
Create a Vector Field from a map of points and value data.Inputs
| Name | Type | Description |
|---|---|---|
| Point map | Vector Point Map | Map of points list and values |
| Interpolation | Point Cloud Interpolation Enum | Interpolation method |
Outputs
| Type |
|---|
| Vector Field |
