Implicit Body, Bounding Box
Scalar Field, Bounding Box, 1.1.0
About this Block
What it does: Assigns a new bounding box to a scalar field. Common uses:- Visualize infinite fields without using the field viewer, such as the TPMS fields.
- Confining fields to the set bounding box.

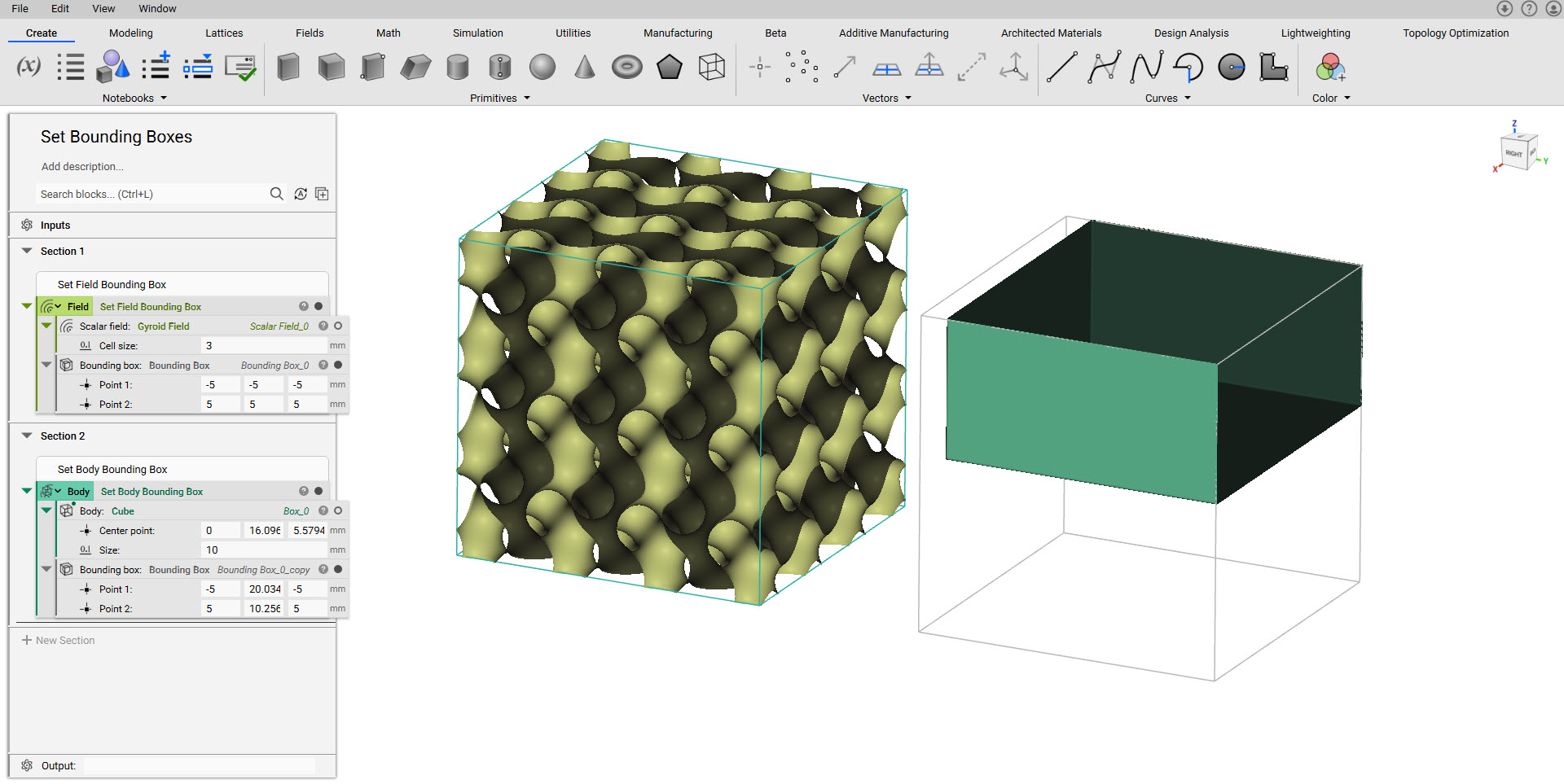

Example File
Download Example: Set Field Bounding Box
Implicit Body, Bounding Box
Set the Bounding Box of an Implicit Body.Inputs
| Name | Type | Description |
|---|---|---|
| Body | Implicit Body | Implicit Body to apply Bounding Box to. |
| Bounding box | Bounding Box | Bounding Box to apply. |
Outputs
| Type |
|---|
| Implicit Body |
Scalar Field, Bounding Box, 1.1.0
Set the Bounding Box of a Scalar Field.Inputs
| Name | Type | Description |
|---|---|---|
| Scalar field | Scalar Field | Field to apply Bounding Box to. |
| Bounding box | Bounding Box | Bounding Box to apply. |
Outputs
| Type |
|---|
| Scalar Field |
About this Block
What it does: Assigns a new bounding box to a scalar field. Common uses:- Visualize infinite fields without using the field viewer, such as the TPMS fields.
- Confining fields to the set bounding box.
Example File
Download Example: Set Field Bounding Box
