About this Block
What it does: The Pipe Intersection block creates a pipe body at the intersection of two implicit bodies. The radius input controls the size of the pipe. Common uses:- Blending converging pipes
Example File
Download Example: Pipe Intersection Example

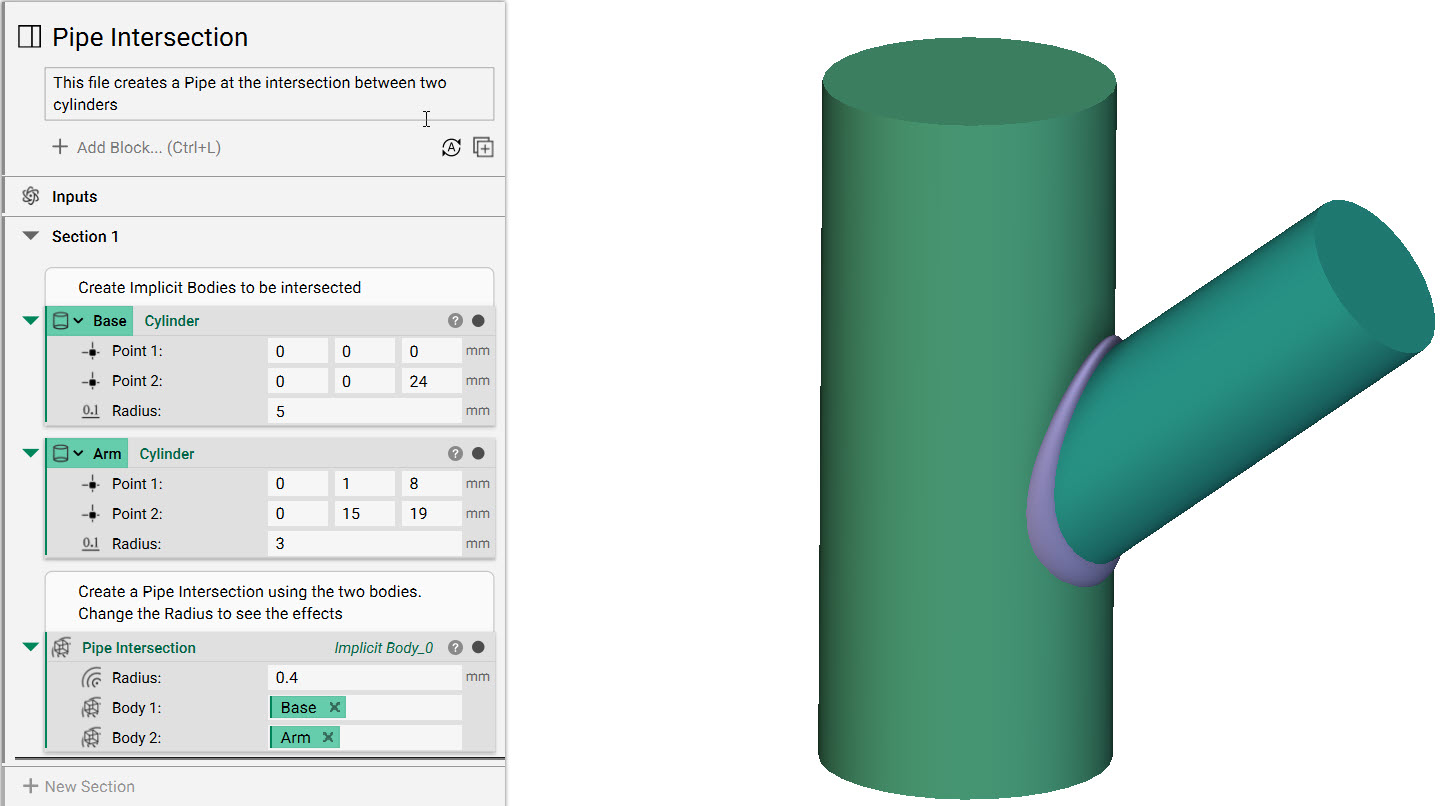

Add a pipe at the intersection of two implicit bodies.
Inputs
| Name | Type | Description |
|---|---|---|
| Radius | Scalar Field | Radius of pipe. |
| Body 1 | Implicit Body | First implicit body to intersect. |
| Body 2 | Implicit Body | Second implicit body to intersect. |
Outputs
| Type |
|---|
| Implicit Body |
