Plane, Integer, Scalar, Bool
About this Block

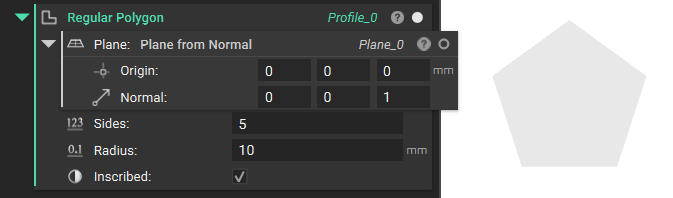

What it does: The Regular Polygon block creates a polygon from a Plane, the number of sides, and a Radius of the circle that circumscribes the resulting polygon.
Common uses:
- Polygons can be used as profiles and are utilized in several modeling blocks such as Sweep Profile and Revolve Profile.
TipsWe can generate the Mesh of the polygon by dragging the vertices property from the Regular Polygon block onto the Points input of Create Single Face Mesh block for Point list of size 3 and 4.
Example File
Plane, Integer, Scalar
Create a radially symmetric polygon.
| Name | Type | Description |
|---|
| Plane | Plane | Plane to locate and orient polygon. |
| Sides | Integer | Number of sides on polygon. |
| Radius | Scalar | Radius of polygon vertices. |
Outputs
Plane, Integer, Scalar, Bool
Create a radially symmetric polygon.
| Name | Type | Description |
|---|
| Plane | Plane | Plane to locate and orient polygon. |
| Sides | Integer | Number of sides on polygon. |
| Radius | Scalar | Radius of polygon vertices. |
| Inscribed | Bool | If checked, all vertices of the polygon will lie on the circumference of the circle specified by the radius. If not selected, the midpoint of each polygon’s side will be tangent to the circle specified by the radius. |
Outputs
