About this Block

What it does: The Skewed Box block generates an implicit Box with a point and 3 Axis inputs. Common uses:

Creating a part from scratch
Boolean operations

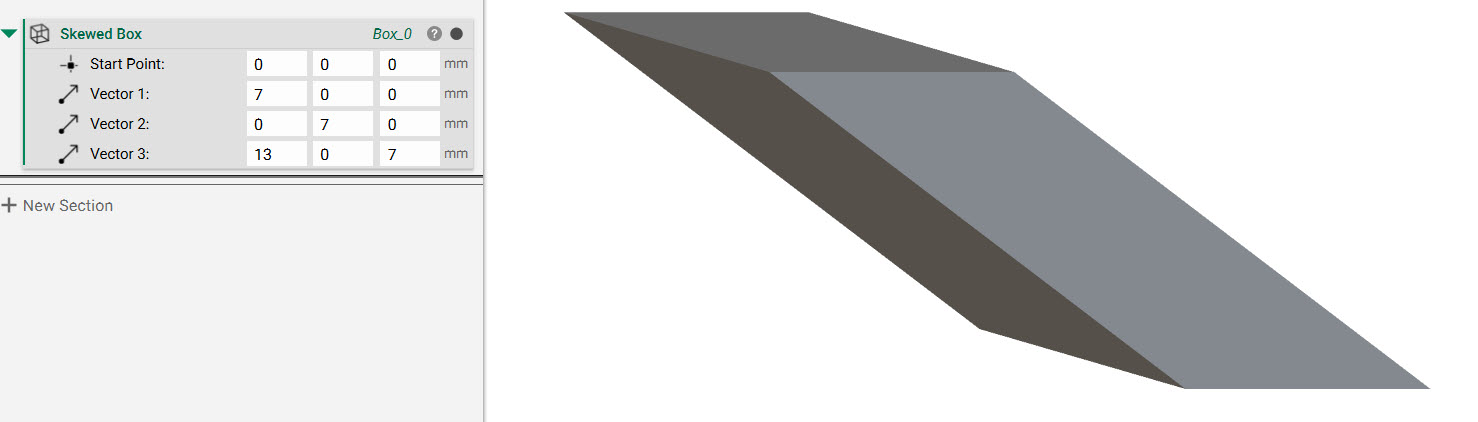

Example File

Skewed Box

Create a skewed box from 3 vectors.

Inputs

Name	Type	Description
Start point	Point	Starting point of skewed box.
Vector 1	Vector	Local x vector of skewed box.
Vector 2	Vector	Local y vector of skewed box.
Vector 3	Vector	Local z vector of skewed box.

Outputs

Type
Box
