About this Block

What it does: This block is used to define the baseline temperature to be used in thermal stress analysis. Commons uses:
  • A boundary condition in a thermal stress analysis.
Tips:

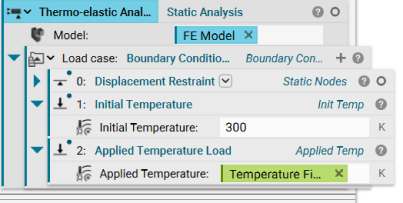

  • Use it with an Applied Temperature boundary condition.
  • The thermal stress is calculated from the difference between the initial temperature and the applied temperature.

​
Example File

Initial Temperature Download Example: Thermal Analysis Defines the baseline temperature to be used in a thermal stress analysis. Thermal stress will be calculated from the difference between the initial temperature and the applied temperature load.

​
Inputs

NameTypeDescription
Initial temperatureTemperature FieldThe baseline temperature which does not produce thermal stress in a thermal stress analysis.

​
Outputs

Type
Model Load
