About this Block

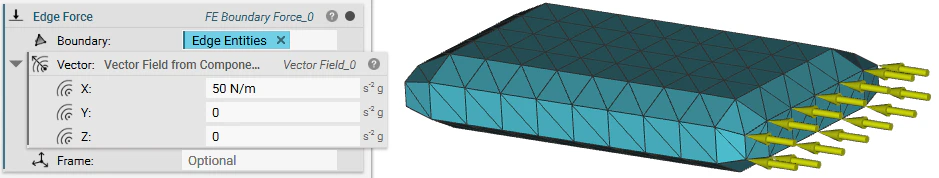

What it does: Applies a force vector to selected boundary edge entities. The force distributes over the nodes on the selected edge. Tips:- It only works with edge entities in boundary selection blocks. An error occurs if either nodes or faces are selected as the entity.
- The reference Frame defines the components of the Vector. This input is optional. Leaving it blank automatically applies the global coordinate system.
- Add a Vector or Vector Field block type to the Vector input.
- Using a Vector Field allows you to use a varying magnitude.
- The Vector is measured in force per unit length.
- If you type in the Vector units as N/m they automatically convert to the standard block units.
Example File
Applies a force vector to selected boundary edge entities. The force will be distributed over the nodes on the selected edge.
Inputs
| Name | Type | Description |
|---|---|---|
| Boundary | Boundary | The boundary edges to apply the load. |
| Vector | Vector Field | The force vector per unit length. |
| Frame | Frame | The reference frame for the components of the Vector. If a Frame is not specified, the components are in the global coordinate system. |
Outputs
| Type |
|---|
| Boundary Force |
