Objective:

Export a quadrangulate mesh (a mesh made up of quadrilaterals) by remeshing a triangular mesh.

​
Applies to:

  • Quad Mesh

​
Procedure:

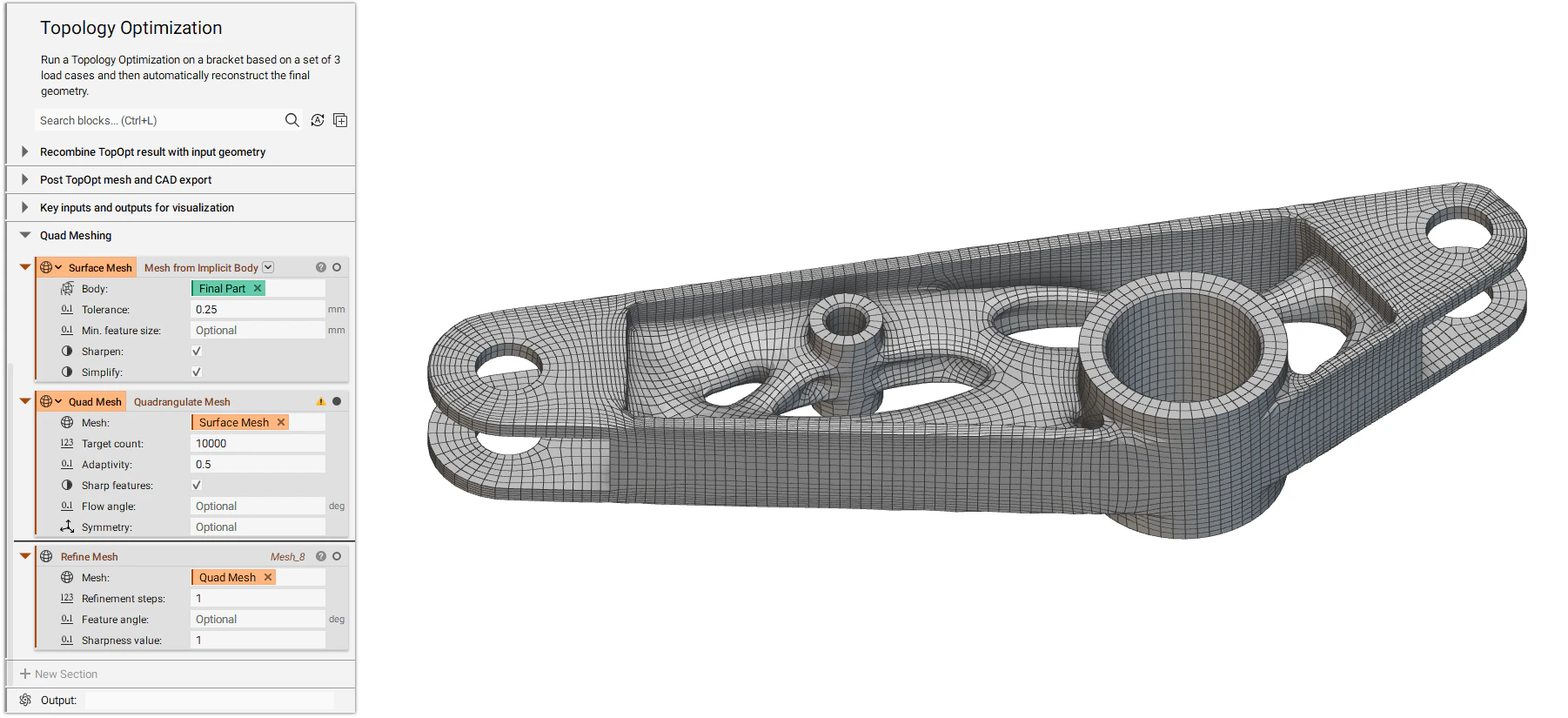

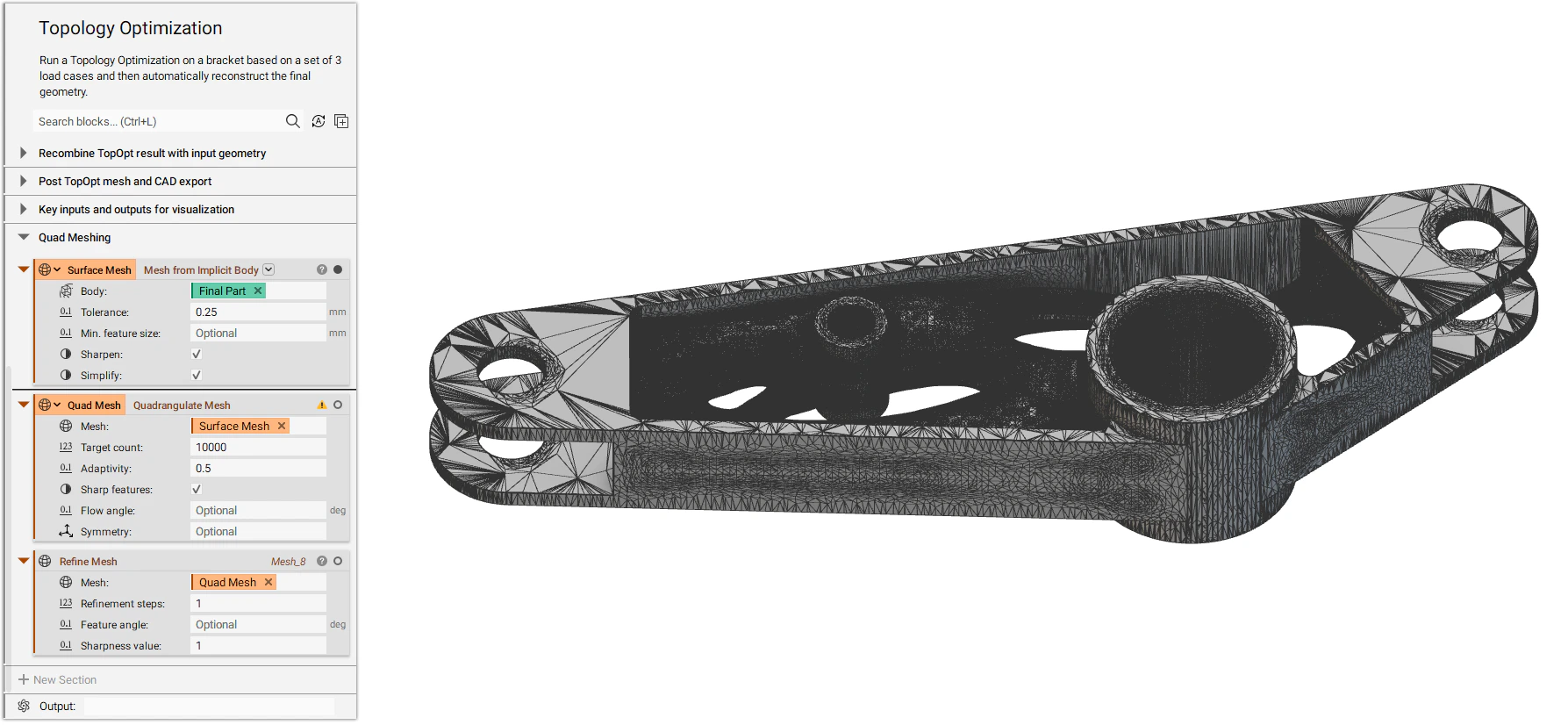

1. Surface Mesh: Create the surface mesh using the Mesh from Implicit Body block. mceclip0.png 2. Refine Mesh: Refine your mesh using Remesh Surface , Simplify by Threshold , Simplify by Amount, or other simplification methods. This step allows for more straightforward conversion to a quad mesh. Make sure your mesh has no meshing errors in it. Take a look at these articles for tips on refining and creating a mesh: 3. Quad Mesh: Convert the refined Mesh to a quad mesh using the Quadrangulate Mesh block. The quad mesh allows easier and faster conversion to a CAD Body format.
  • A quad mesh is not just a step for converting but is also a very beneficial model.
  • Cell Map on Quad Mesh is used to generate a lattice structure that is conformal to the quad mesh.
  • Check out this article if you encounter errors when converting to a Quad Mesh.

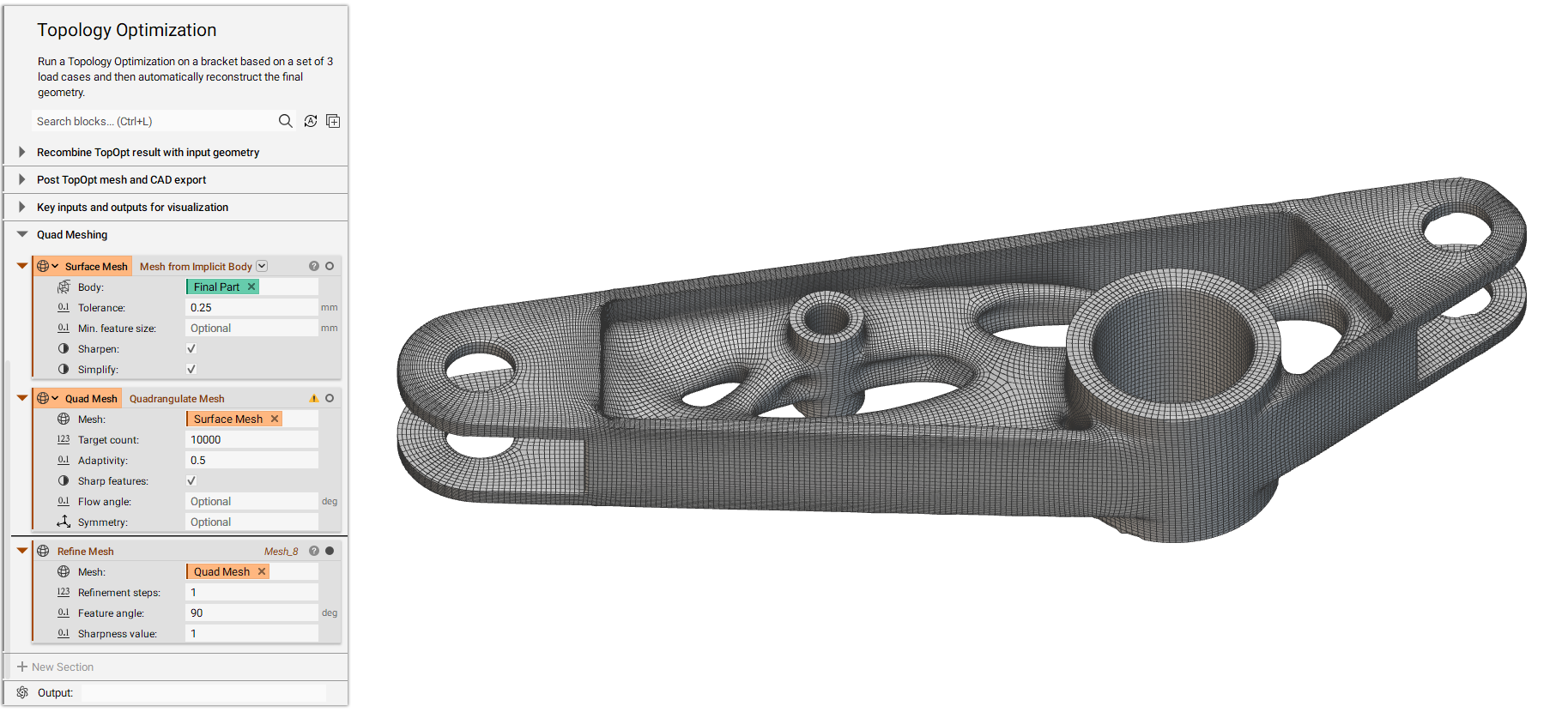

Tip: Use a Refine Mesh block to refine the Quad Mesh, capture further details, and reduce the amount of rounding near sharp edges.
mceclip2.png 4.. Export: Add an Export Mesh block and choose your save location and file type: STL, OBJ, 3MF, or PLY. And that’s it! You’ve successfully exported your part as a quadrilateral mesh. Are you still having issues? Contact the support team, and we’ll be happy to help!

​
Download the Example file:

​
