Objective:
Debossing an imageApplies to:
- Import Bitmap
- Map Bitmap to Plane
Procedure:
- Get started with importing your image (png) file using the Import Bitmap block (this block is a beta block)
- Add a Map Bitmap to Plane block
- Insert the Import Bitmap block in the Bitmap field
- Create a Plane

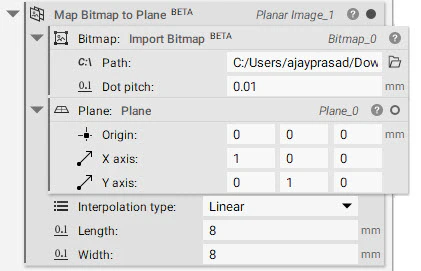

- Choose your Interpolation type, Length, and Width

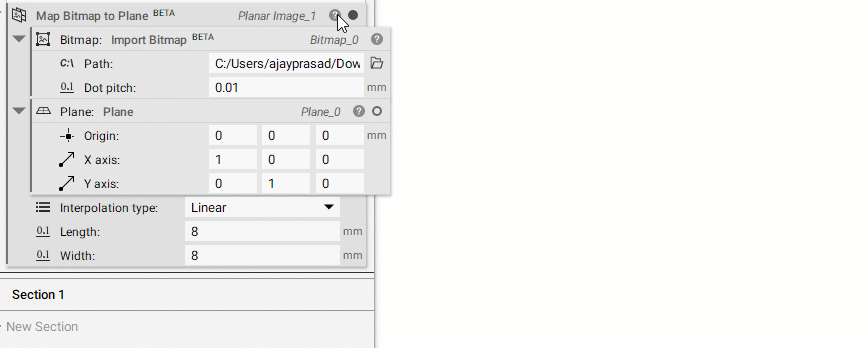

- Drag a Scalar Field (Alpha, Blue, Grayscale, Green, Hue, and Red) chip from the Planar Image_1’s properties panel into the Notebook. The chosen field is what will be debossed in further steps.
- Create the geometry for the image to be debossed into
- Add Box of Length 10mm, Width 10mm, and Height 2mm
- Deboss the image
- Add Offset Body
- Insert Ramp in the Distance field
- Scalar field: Grayscale Values
- In min: 0
- In max: 1
- Out min: 0mm
- Out max: 0.2mm
- Continuity: Geometric (CO)
- Boolean operation to remove the excess material and combine it with our initial geometry
