Meshes
About this Block

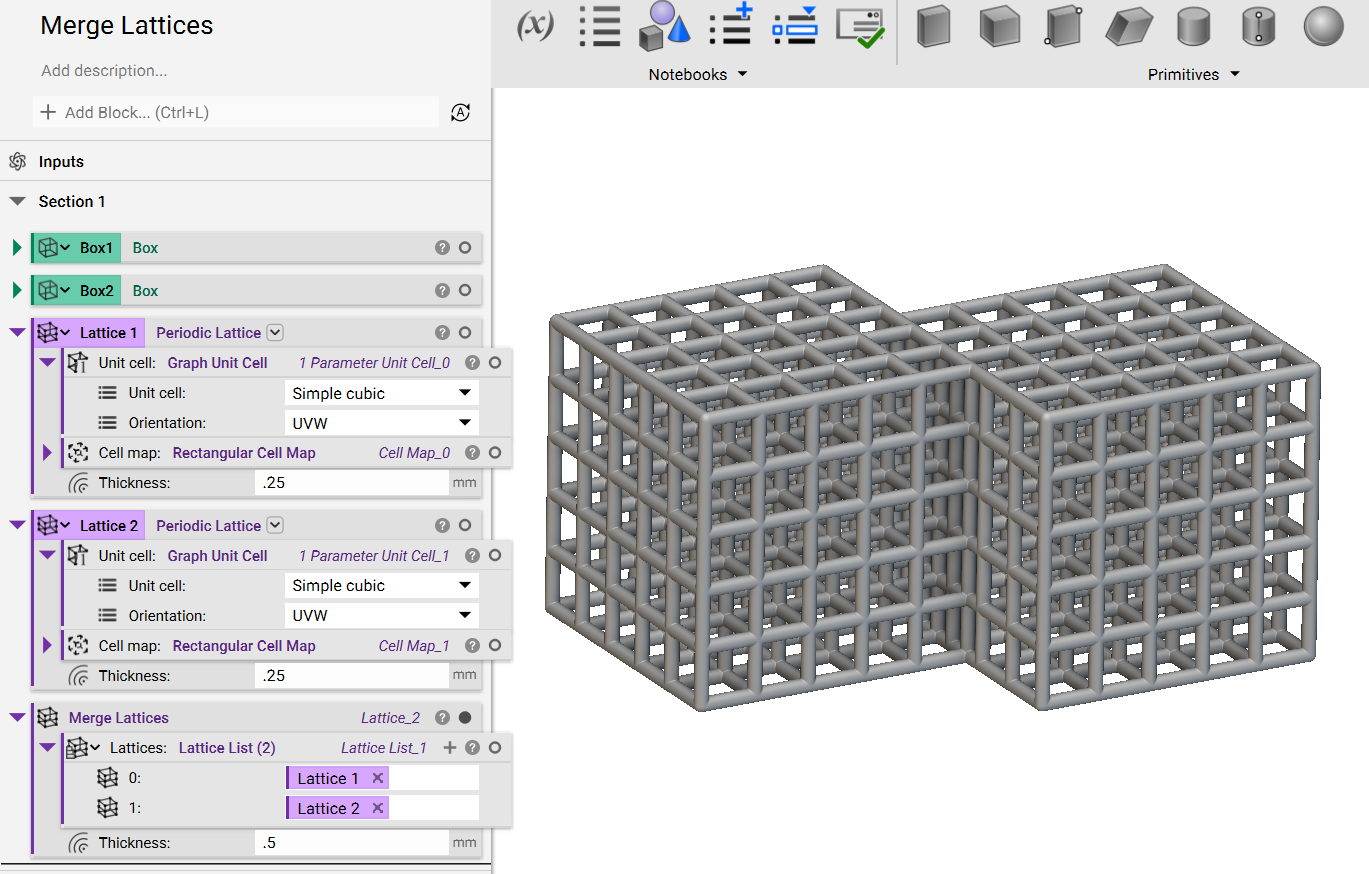

What it does: The Merge Lattices block merges multiple Lattices together into a single Lattice. Tips:- The new Thickness overrides the Thickness of the input lattices.
- The Thickness of the lattice is a Scalar Field type, which allows for a variable Thickness.
- Open up the block’s Properties Panel to view the beam, implicit, and thick graph properties.
- These properties are populated based on the type of Unit Cell you use. An error sign with a tooltip appears next to the property if it is empty.
Graphs, 1.1.0
Merges multiple Graph together into a single Graph. Duplicate vertices, beams, and faces will be removed.Inputs
| Name | Type | Description |
|---|---|---|
| Graphs | Graph List | Graphs to merge together. |
Outputs
| Type |
|---|
| Graph |
Graphs, 1.2.0
Merges multiple Graph together into a single Graph. Duplicate vertices, beams, and faces will be removed.Inputs
| Name | Type | Description |
|---|---|---|
| Graphs | Graph List | Graphs to merge together. |
Outputs
| Type |
|---|
| Graph |
Graphs, 1.3.0
Merges multiple Graphs together into a single Graph.Inputs
| Name | Type | Description |
|---|---|---|
| Graphs | Graph List | Graphs to merge together. |
Outputs
| Type |
|---|
| Graph |
Lattices, Scalar Field, 1.1.0
Merge multiple Lattices together into a single Lattice. Duplicate vertices, beams, and faces will be removed.Inputs
| Name | Type | Description |
|---|---|---|
| Lattices | Lattice List | Lattices to merge together. |
| Thickness | Scalar Field | Thickness for the merged Lattice. |
Outputs
| Type |
|---|
| Lattice |
Lattices, Scalar Field, 1.2.0
Merge multiple Lattices together into a single Lattice. Duplicate vertices, beams, and faces will be removed.Inputs
| Name | Type | Description |
|---|---|---|
| Lattices | Lattice List | Lattices to merge together. |
| Thickness | Scalar Field | Thickness for the merged Lattice. |
Outputs
| Type |
|---|
| Lattice |
Lattices, Scalar Field, 1.3.0
Merge multiple Lattices together into a single Lattice.Inputs
| Name | Type | Description |
|---|---|---|
| Lattices | Lattice List | Lattices to merge together. |
| Thickness | Scalar Field | Thickness for the merged Lattice. |
Outputs
| Type |
|---|
| Lattice |
Meshes
Merge multiple Meshes into a single Mesh. Duplicate vertices will not be removed.Inputs
| Name | Type | Description |
|---|---|---|
| Meshes | Mesh List | Meshes to merge. |
Outputs
| Type |
|---|
| Mesh |
