About this Block

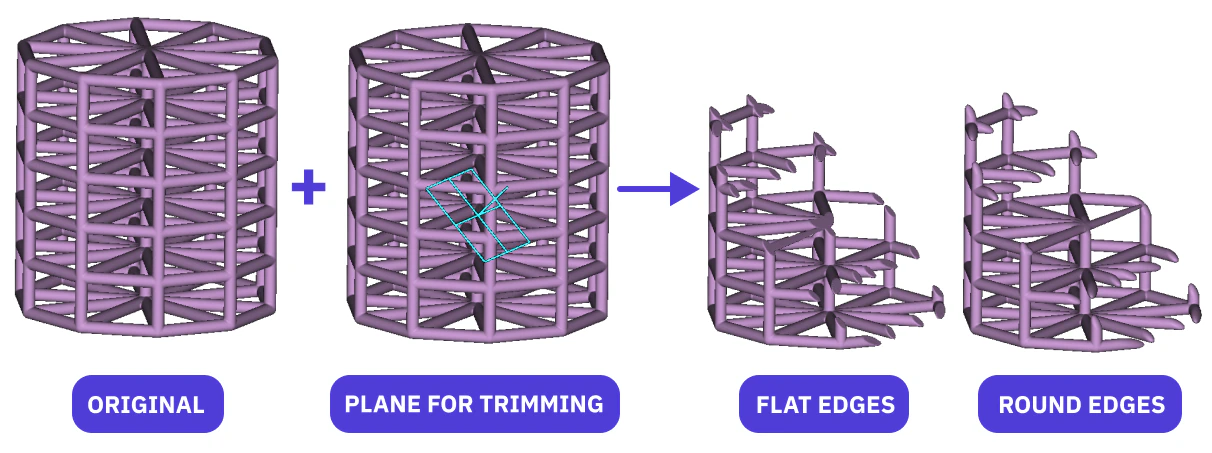

What it does: Trims lattice beams using a Volume, creating your desired lattice shape. You have the option to keep the beams inside of the Volume or outside, based on a Feature tolerance. A toggle switch allows you to round the edges of the remaining trimmed lattice. Common uses:- Creating custom lattice shapes.
-
The block keeps the lattice beams based on the Lattice to remain input. There are two options:
- Inside: Keeps all the lattice beams within the Volume input.
- Outside: Keeps all the lattice beams outside of the Volume input.
- If you toggle on the Rounded edges input, the edges may protrude past your trimming volume.
- You can use a Plane in the Volume input.
-
Open up the block’s Properties Panel to view the beam, implicit, and thick graph properties.
- These properties are populated based on the type of Unit Cell you use. An error sign with a tooltip appears next to the property if it is empty.
Graph, Implicit Body, Inside or Outside Enum, Scalar, 1.1.0
Trims a lattice with an Implicit Body as a trimming tool. Inputs| Name | Type | Description |
|---|---|---|
| Graph | Graph | Graph to trim. |
| Domain | Implicit Body | Implicit body to act as trimming domain. |
| To remain | Inside or Outside Enum | Option to trim the lattice inside or outside of the trimming domain. |
| Feature tolerance | Scalar | Minimum feature size to accurately capture boundary. |
| Type |
|---|
| Graph |
Lattice, Implicit Body, Inside or Outside Enum, Scalar, Bool
Trims a lattice with an Implicit Body as a trimming tool. Inputs| Name | Type | Description |
|---|---|---|
| Lattice | Lattice | Lattice to be trimmed. |
| Domain | Implicit Body | Implicit body to act as trimming domain. |
| To remain | Inside or Outside Enum | Option to trim the lattice inside or outside of the trimming domain. |
| Feature tolerance | Scalar | Minimum feature size to accurately capture boundary. |
| Rounded edges | Bool | Option to round edges of the resulting lattice. |
| Type |
|---|
| Lattice |
Voronoi Volume Lattice, Implicit Body, Inside or Outside Enum, Scalar, Bool
Trims a lattice with an Implicit Body as a trimming tool. Inputs| Name | Type | Description |
|---|---|---|
| Voronoi lattice | Voronoi Volume Lattice | Lattice to be trimmed. |
| Domain | Implicit Body | Implicit body to act as trimming domain. |
| To remain | Inside or Outside Enum | Option to trim the lattice inside or outside of the trimming domain. |
| Feature tolerance | Scalar | Minimum feature size to accurately capture boundary. |
| Rounded edges | Bool | Option to round edges of the resulting lattice. |
