Lattice, Scalar Field, Implicit Body, Selection Region, Scalar
Lattice, Scalar Field, Implicit Body, Selection Region, Scalar, 1.1.0
Voronoi Volume Lattice, Scalar Field, Implicit Body, Selection Region, Scalar
Voronoi Volume Lattice, Scalar Field, Implicit Body, Selection Region, Scalar, 1.1.0
About this Block

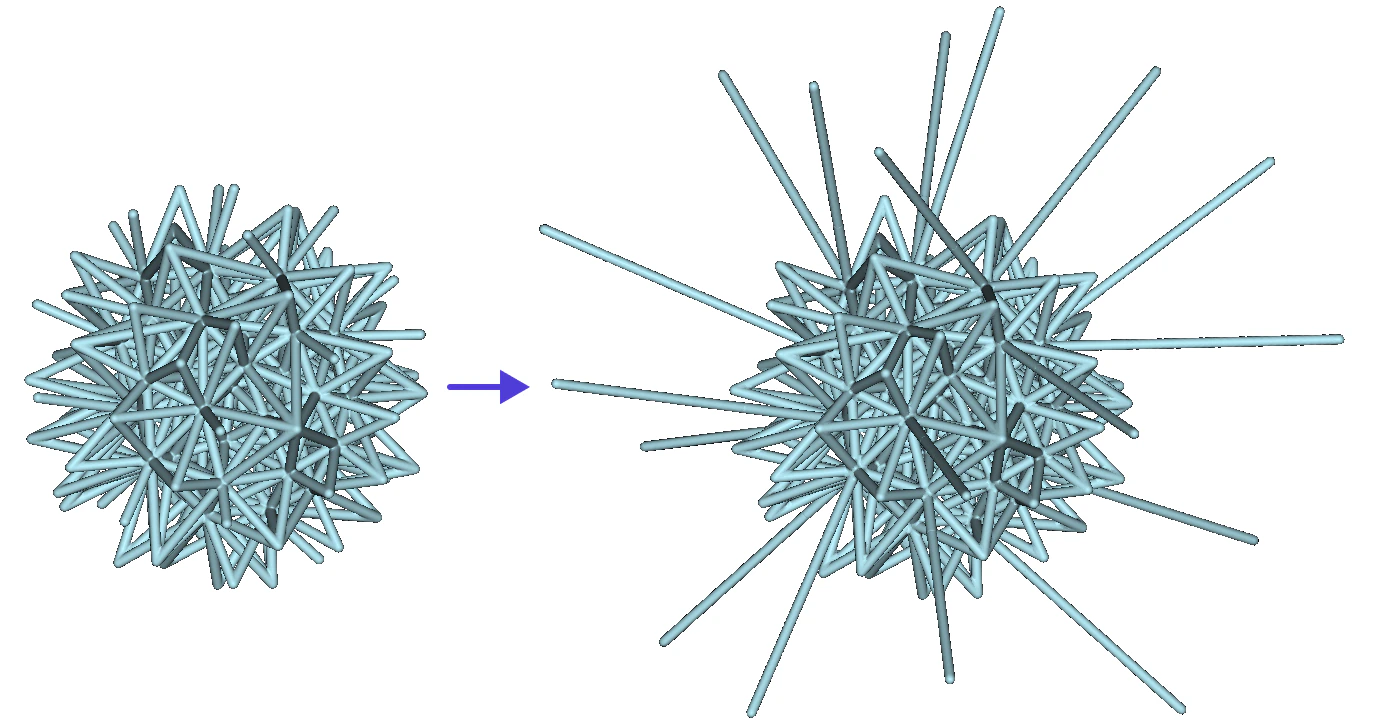

What it does: Extends open beams within a Lattice by using a Body input to select which beams to extend.- The Region input allows for following selection methods:
- Inside: Selects open beams inside the Body.
- Outside: Selects open beams outside the Body.
- Boundary: Selects open beams on the surface of the Body.
- Adjusting the Tolerance input value determines which beams are considered inside, outside, or on the surface.
- Open up the block’s Properties Panel to view the beam, implicit, and thick graph properties.
- These properties are populated based on the type of Unit Cell you use. An error sign with a tooltip appears next to the property if it is empty.
Example File
Download Example: Extend Open Lattice Beams
Lattice, Scalar Field, Implicit Body, Selection Region, Scalar
Extends open beams within a Lattice. Inputs| Name | Type | Description |
|---|---|---|
| Lattice | Lattice | Lattice containing open beams to extend. |
| Distance | Scalar Field | Distance to extend the open beams. |
| Body | Implicit Body | Implicit body defining the beam selection region. |
| Region | Selection Region | Option to select beams inside, outside, or touching the surface of the implicit body. |
| Tolerance | Scalar | Tolerance value to use for determining when beams are inside, outside, or on the boundary of the implicit body. |
| Type |
|---|
| Lattice |
Lattice, Scalar Field, Implicit Body, Selection Region, Scalar, 1.1.0
Extends open beams within a Lattice. Inputs| Name | Type | Description |
|---|---|---|
| Lattice | Lattice | Lattice containing open beams to extend. |
| Distance | Scalar Field | Distance to extend the open beams. |
| Body | Implicit Body | Implicit body defining the beam selection region. |
| Region | Selection Region | Option to select beams inside, outside, or touching the surface of the implicit body. |
| Tolerance | Scalar | Tolerance value to use for determining when beams are inside, outside, or on the boundary of the implicit body. |
| Type |
|---|
| Lattice |
Voronoi Volume Lattice, Scalar Field, Implicit Body, Selection Region, Scalar
Extend open beams within a Voronoi Volume Lattice. Inputs| Name | Type | Description |
|---|---|---|
| Voronoi lattice | Voronoi Volume Lattice | Voronoi volume lattice containing open beams to extend. |
| Distance | Scalar Field | Distance to extend the open beams. |
| Body | Implicit Body | Implicit body defining the beam selection region. |
| Region | Selection Region | Option to select beams inside, outside, or touching the surface of the implicit body. |
| Tolerance | Scalar | Tolerance value to use for determining when beams are inside, outside, or on the boundary of the implicit body. |
Voronoi Volume Lattice, Scalar Field, Implicit Body, Selection Region, Scalar, 1.1.0
Extend open beams within a Voronoi Volume Lattice. Inputs| Name | Type | Description |
|---|---|---|
| Voronoi lattice | Voronoi Volume Lattice | Voronoi volume lattice containing open beams to extend. |
| Distance | Scalar Field | Distance to extend the open beams. |
| Body | Implicit Body | Implicit body defining the beam selection region. |
| Region | Selection Region | Option to select beams inside, outside, or touching the surface of the implicit body. |
| Tolerance | Scalar | Tolerance value to use for determining when beams are inside, outside, or on the boundary of the implicit body. |
