About this Block
What it does: The Graph from Line Segments block converts line segments to a graph type. Common uses:- Used as a utility block for creating a Custom Graph Unit Cell. Use as the input into the Custom Unit Cell block.
- Used for support structure generation.
- Any invalid (infinite line or NaN endpoint) line segments are ignored and will not be in the output Graph.
- Duplicate line segments are removed from the Graph.

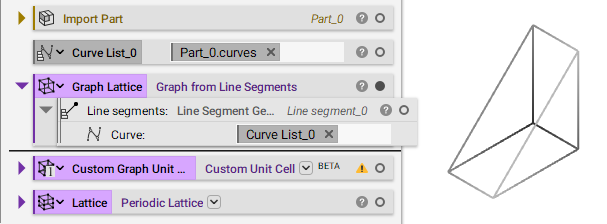

Example File
Download Example: Graph from Line Segments
Constructs a Graph from a list of Line Segments.
Each Line Segment becomes a beam in the resulting Graph. Line Segments that share endpoints will join a shared vertex. Duplicate Line Segments will be removed.
Inputs
| Name | Type | Description |
|---|---|---|
| Line segments | Line List | Line segments to construct the graph. |
Outputs
| Type |
|---|
| Graph |
