Lattice, Scalar Field, Scalar Field, Scalar Field
Lattice, Vector Field, Scalar Field, Scalar Field
About this Block

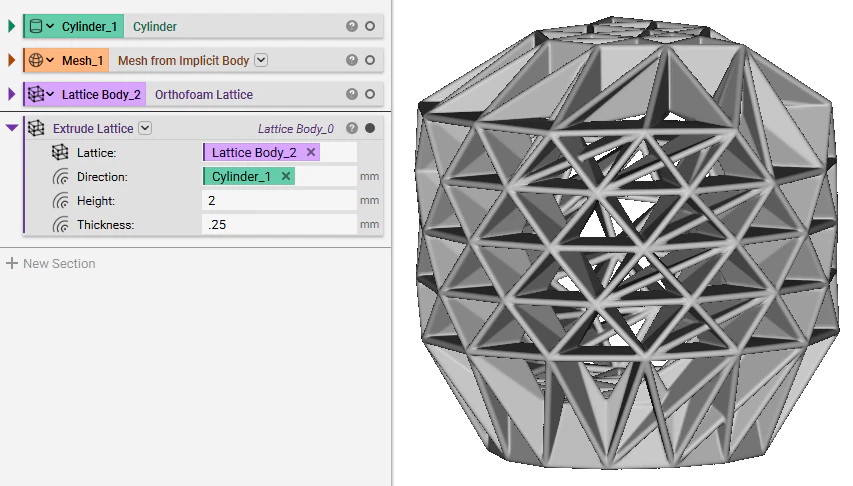

What it does: Creates directional ribs from the beam elements of a Lattice.- The Direction input requires a field to derive the normal direction from.
- Each beam’s Height is measured from the surface of the initial lattice.
- The Direction, Height, and Thickness inputs are all scalar field inputs that can use the Ramp block to vary the properties of the ribs.
- The outward direction of the implicit body used in the Direction input is the positive direction of the field.
- Open up the block’s Properties Panel to view the beam, implicit, and thick graph properties.
- These properties are populated based on the type of Unit Cell you use. An error sign with a tooltip appears next to the property if it is empty.
Lattice, Scalar Field, Scalar Field, Scalar Field
Creates directional ribs from the beams of a Lattice. Inputs| Name | Type | Description |
|---|---|---|
| Lattice | Lattice | Lattice from which to extrude ribs. |
| Direction | Scalar Field | Field to derive the normal direction from. |
| Height | Scalar Field | Field to assign height at rib locations. |
| Thickness | Scalar Field | Lattice thickness. |
| Type |
|---|
| Lattice |
Lattice, Vector Field, Scalar Field, Scalar Field
Creates directional ribs from the beams of a Lattice. Inputs| Name | Type | Description |
|---|---|---|
| Lattice | Lattice | Lattice from which to extrude ribs. |
| Direction | Vector Field | Field to derive the offset direction from. |
| Height | Scalar Field | Field to assign height at rib locations. |
| Thickness | Scalar Field | Lattice thickness. |
| Type |
|---|
| Lattice |
