About this Block
What it does: The Mirror Body block mirrors an Implicit Body across a plane. Common uses:- Mirroring features or bodies

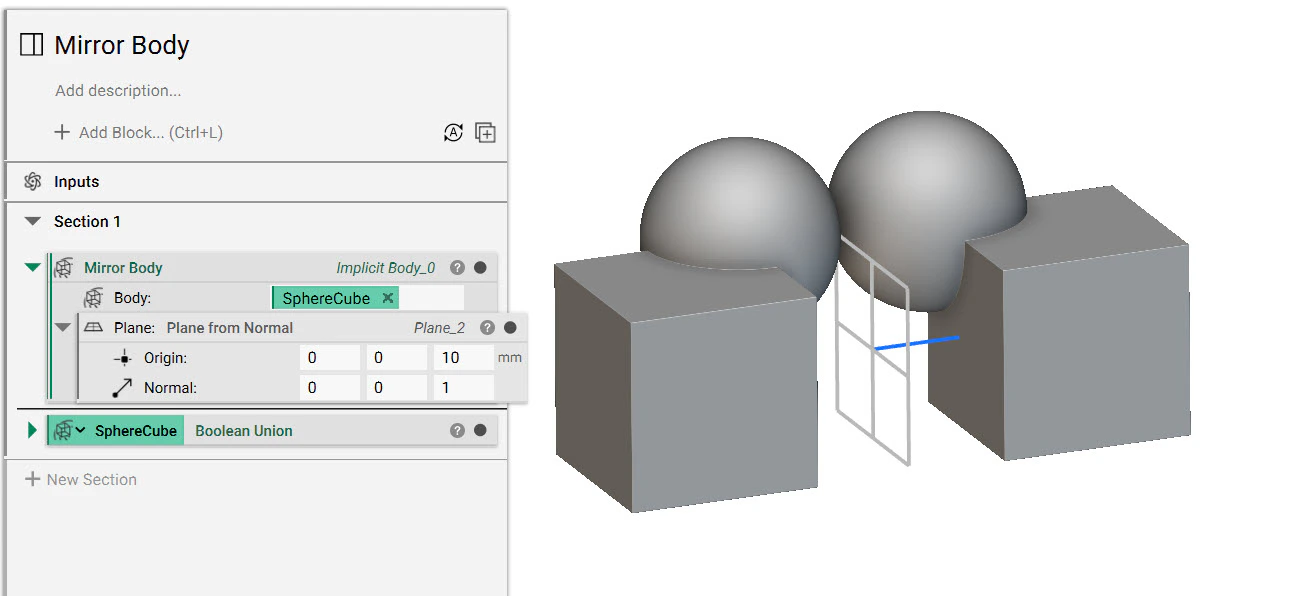

Example File
Mirrors an Implicit Body about a plane.
Inputs
| Name | Type | Description |
|---|---|---|
| Body | Implicit Body | Implicit Body to mirror. |
| Plane | Plane | Plane about which to mirror the Implicit Body. |
Outputs
| Type |
|---|
| Implicit Body |
