About this Block

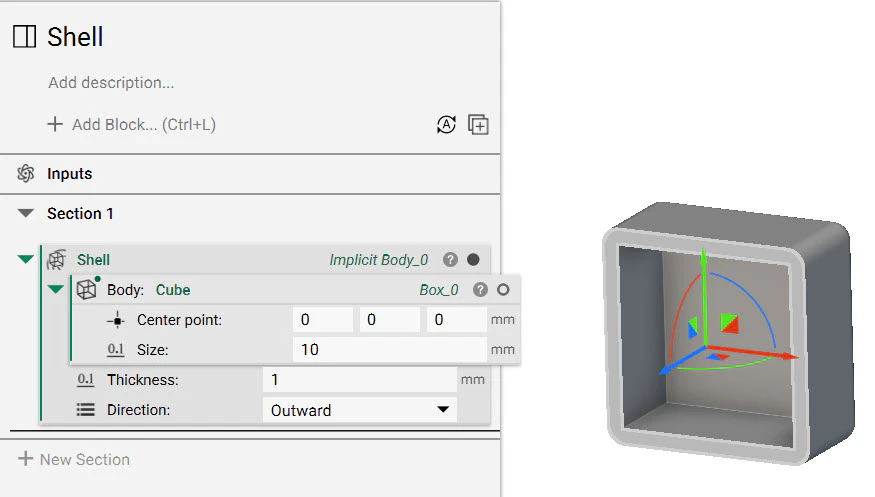

What it does: The Shell block hollows out an Implicit Body with a thickened outer wall. Common uses:- Lightweighting solid parts
Example File
Implicit Body, Scalar, Shell Enum
Hollow an object by offsetting inward or outward the outer surface of an implicit body.Inputs
| Name | Type | Description |
|---|---|---|
| Body | Implicit Body | The implicit body to shell. |
| Thickness | Scalar | The wall thickness. |
| Direction | Shell Enum | The direction to thicken the body to produce the wall thickness |
Outputs
| Type |
|---|
| Implicit Body |
Implicit Body, Scalar Field, Shell Enum, 5.24.0
Hollow an object by offsetting inward, center, or outward from the Surface.Inputs
| Name | Type | Description |
|---|---|---|
| Body | Implicit Body | Body to shell |
| Thickness | Scalar Field | Wall thickness to offset by. negative values will shell in the reverse direction. |
| Direction | Shell Enum | Direction to shell the body. |
Outputs
| Type |
|---|
| Implicit Body |
