About this Block

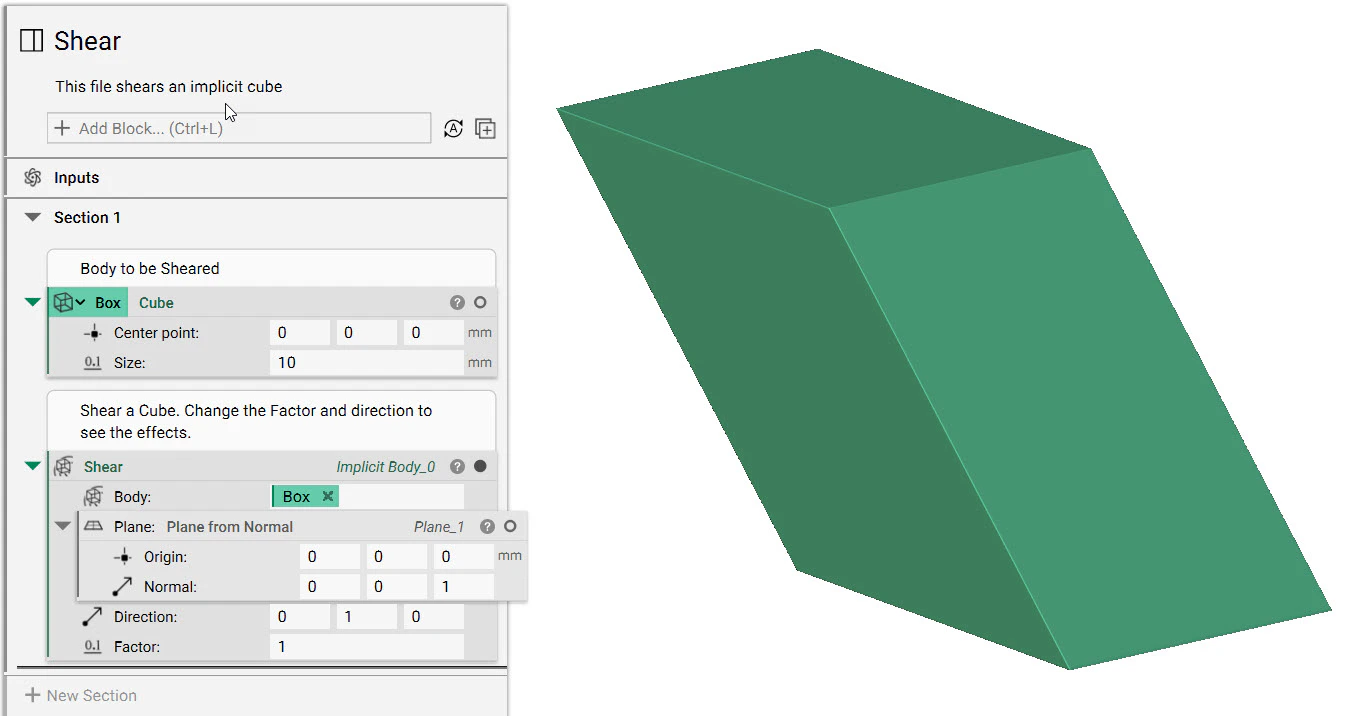

What it does: The Shear block shears (movement in which parallel internal surfaces slide past one another) an implicit body based on a Plane, Direction, and Factor of Magnitude for Shear.Example File
Inputs
| Name | Type | Description |
|---|---|---|
| Body | Implicit Body | Implicit body to shear. |
| Plane | Plane | Plane to originate the shear operation. |
| Direction | Vector | Vector to define the direction of the shear operation. |
| Factor | Scalar | Magnitude of shear per world unit. |
Outputs
| Type |
|---|
| Implicit Body |
