Profile (old), Axis, Scalar
Profile, Axis, Scalar, 5.20.0
About this Block

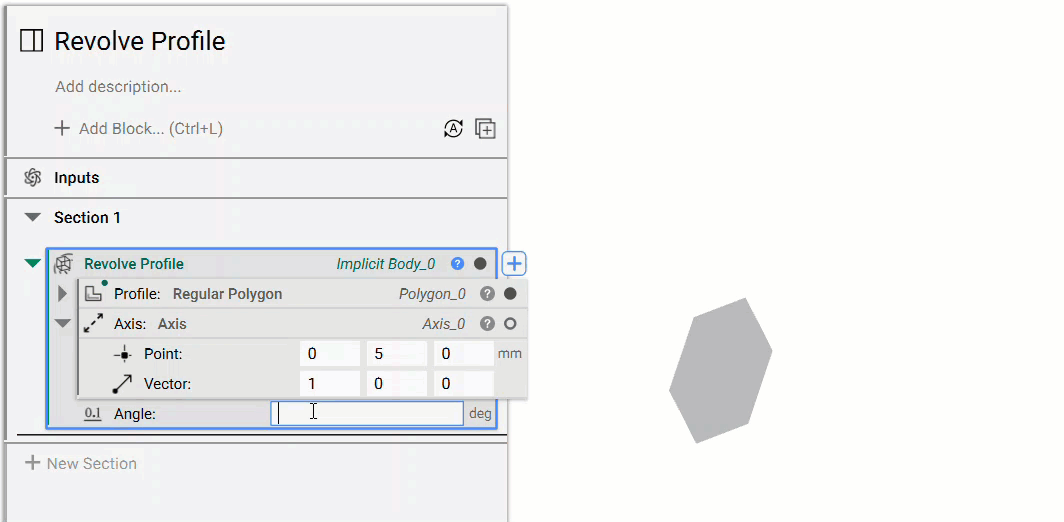

What it does: The Revolve Profile block revolves a profile around a specified axis by a revolution angle in degrees. This creates a 3D implicit body from the original orientation to the revolved profile.Example File
Profile (old), Axis, Scalar
Revolve a profile around an axis.Inputs
| Name | Type | Description |
|---|---|---|
| Profile | Profile (old) | Profile to revolve. |
| Axis | Axis | Axis to revolve profile around. |
| Angle | Scalar | Revolution angle. |
Outputs
| Type |
|---|
| Implicit Body |
Profile, Axis, Scalar, 5.20.0
Revolve a profile around an axis.Inputs
Outputs
| Type |
|---|
| Implicit Body |
