About this Block
What it does: The Twist block twists an implicit body based on a Plane that defines the origin, the angle of the twist, and the rate at which the twist occurs. Common uses:- Warped latticing

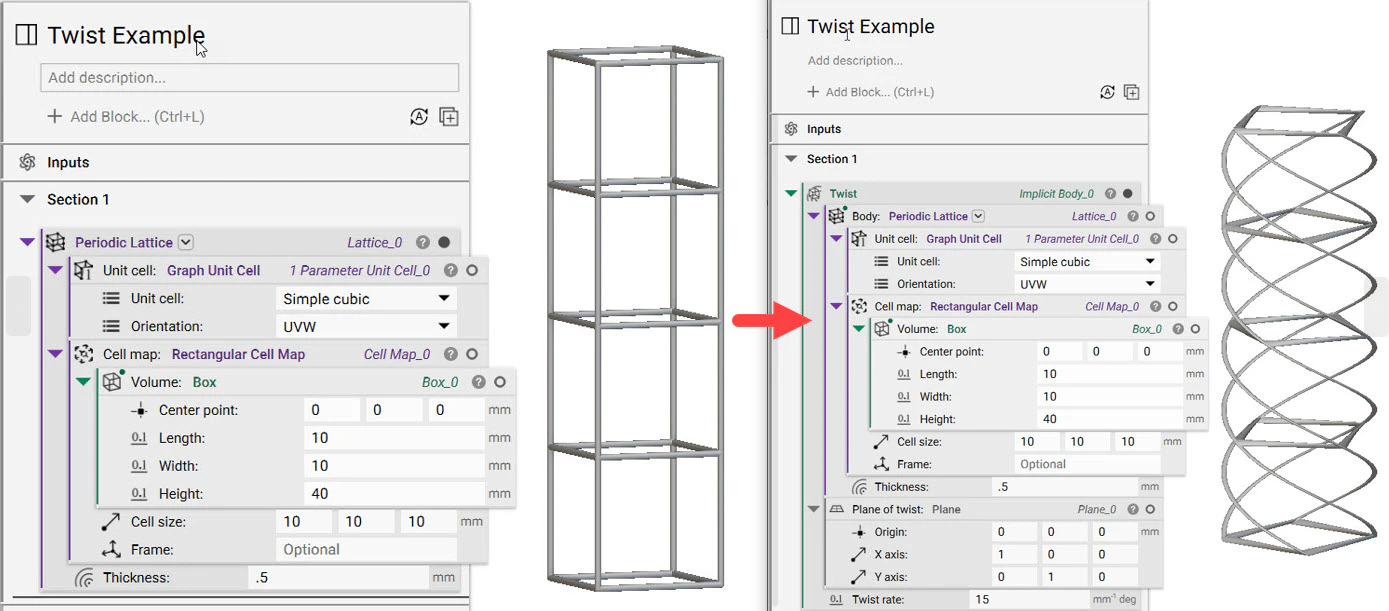

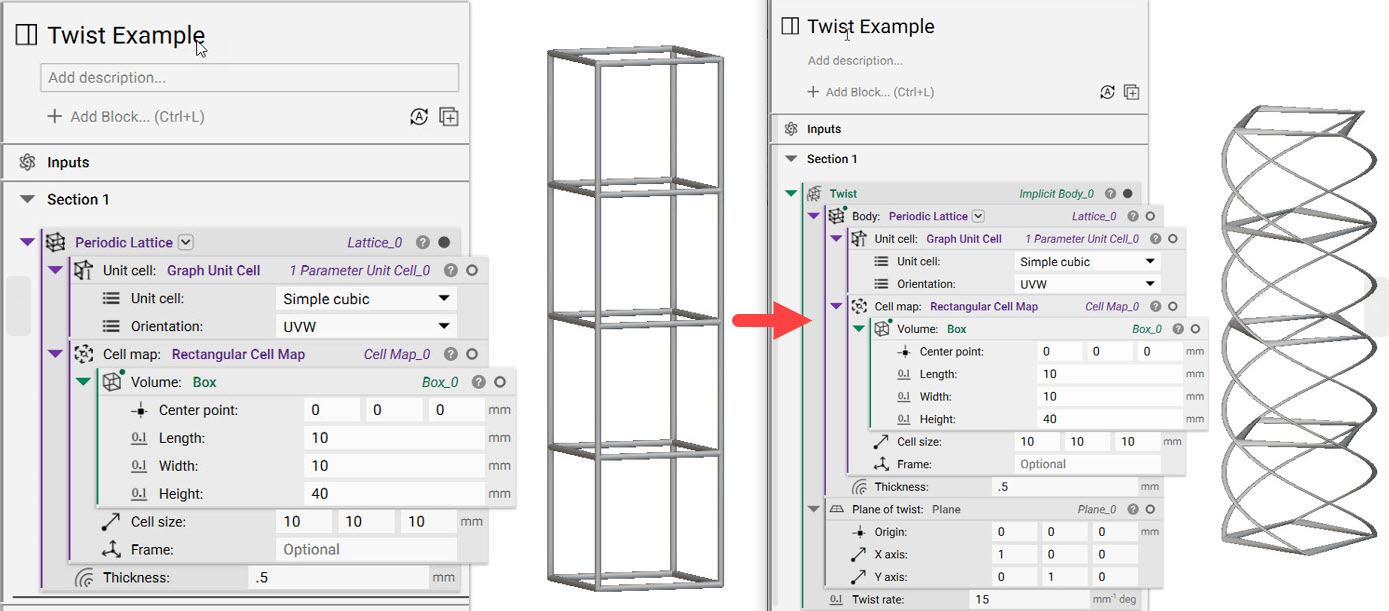

Example File
Inputs
| Name | Type | Description |
|---|---|---|
| Body | Implicit Body | Implicit body to twist. |
| Plane of twist | Plane | Plane for defining the origin and orientation of twist. |
| Twist rate | Scalar Field | Angle of twist per unit length. |
Outputs
| Type |
|---|
| Implicit Body |
