Incompatible units in input

​
About the error

Related Error Messages:
  • Incompatible units in input positions 3 and 4
  • Incompatible units in input positions 0 and 2
Issue: The inputs within the block have mismatching units. Depending on the input, the units need to be the same as other inputs in the block. Cause:
  • Inputs within the same block have different units.
  • Inputs don’t have any assigned units and were expecting units.
  • One input has one unit defined but the other is undefined.
Solution:
  • Type in the correct unit in the input.
Ex. The units in inputs ‘In Min’ (Length) and ‘Out Min’ (Mass) do not match. Ensure that both input units match to run this block.
ExampleReason

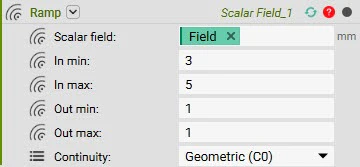

Unit MismatchINCOMPATIBLE UNITS: No units assigned in In min or In max. They need to match the Field units. Field units are automatically chosen based on the Field Type.

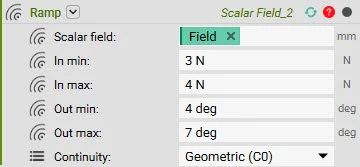

Unit MismatchINCOMPATIBLE UNITS: The units in In min and In max don’t match the Field units. They need to match the Field Units.
