Graphs, 1.1.0
Graphs, 1.2.0
Graphs, 1.3.0
Lattices, Scalar Field, 1.1.0
Lattices, Scalar Field, 1.2.0
Lattices, Scalar Field, 1.3.0
Meshes
About this Block
What it does: The Merge Meshes block merges multiple meshes into a single mesh. Common uses:- Combining multiple meshes into a single mesh.
- Adjacent nodes from the meshes will not be shifted or combined, and connectivity will not be assigned between nodes from separate meshes.
- Adjacent nodes can be merged using Collapse Mesh Vertices, and the Remesh Surface block can redefine the connectivity of a mesh for downstream use.
- Different methods for refining meshes: (https://support.ntopology.com/hc/articles/360061372374)
- How to export multiple mesh objects as a single STL: (https://support.ntopology.com/hc/articles/1500002149622)
Example File
Graphs, 1.1.0
Merges multiple Graph together into a single Graph. Duplicate vertices, beams, and faces will be removed.Inputs
| Name | Type | Description |
|---|---|---|
| Graphs | Graph List | Graphs to merge together. |
Outputs
| Type |
|---|
| Graph |
Graphs, 1.2.0
Merges multiple Graph together into a single Graph. Duplicate vertices, beams, and faces will be removed.Inputs
| Name | Type | Description |
|---|---|---|
| Graphs | Graph List | Graphs to merge together. |
Outputs
| Type |
|---|
| Graph |
Graphs, 1.3.0
Merges multiple Graphs together into a single Graph.Inputs
| Name | Type | Description |
|---|---|---|
| Graphs | Graph List | Graphs to merge together. |
Outputs
| Type |
|---|
| Graph |
Lattices, Scalar Field, 1.1.0
Merge multiple Lattices together into a single Lattice. Duplicate vertices, beams, and faces will be removed.Inputs
| Name | Type | Description |
|---|---|---|
| Lattices | Lattice List | Lattices to merge together. |
| Thickness | Scalar Field | Thickness for the merged Lattice. |
Outputs
| Type |
|---|
| Lattice |
Lattices, Scalar Field, 1.2.0
Merge multiple Lattices together into a single Lattice. Duplicate vertices, beams, and faces will be removed.Inputs
| Name | Type | Description |
|---|---|---|
| Lattices | Lattice List | Lattices to merge together. |
| Thickness | Scalar Field | Thickness for the merged Lattice. |
Outputs
| Type |
|---|
| Lattice |
Lattices, Scalar Field, 1.3.0
Merge multiple Lattices together into a single Lattice.Inputs
| Name | Type | Description |
|---|---|---|
| Lattices | Lattice List | Lattices to merge together. |
| Thickness | Scalar Field | Thickness for the merged Lattice. |
Outputs
| Type |
|---|
| Lattice |
Meshes
Merge multiple Meshes into a single Mesh. Duplicate vertices will not be removed.Inputs
| Name | Type | Description |
|---|---|---|
| Meshes | Mesh List | Meshes to merge. |
Outputs
| Type |
|---|
| Mesh |
About this Block

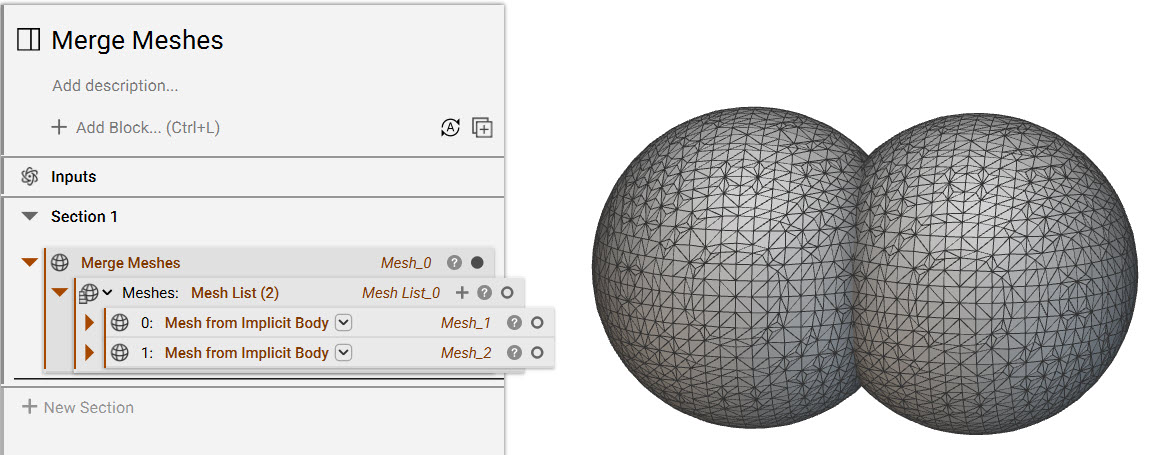

What it does: The Merge Meshes block merges multiple meshes into a single mesh. Common uses:- Combining multiple meshes into a single mesh.
- Adjacent nodes from the meshes will not be shifted or combined, and connectivity will not be assigned between nodes from separate meshes.
- Adjacent nodes can be merged using Collapse Mesh Vertices, and the Remesh Surface block can redefine the connectivity of a mesh for downstream use.
- Different methods for refining meshes: (https://support.ntopology.com/hc/articles/360061372374)
- How to export multiple mesh objects as a single STL: (https://support.ntopology.com/hc/articles/1500002149622)
Example File
