About this Block

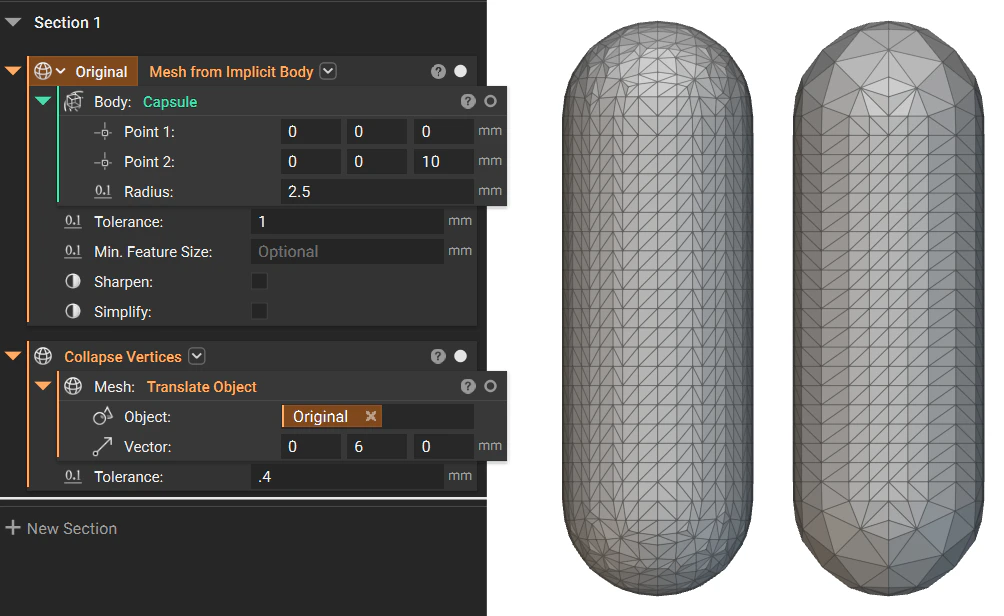

What it does: The Collapse Vertices block simplifies a surface mesh, lattice, or graph by joining and consolidating vertices with a certain distance to each other. When vertices are at a distance lower than the threshold input, a new vertex is placed at the average location of the vertices and joined back into the structure. Common uses:- Used to lower the element count
- Clean up a structure after merging multiple together
Example File
Graph, Scalar
Collapses and merges the vertices of a Graph that are within a given distance of each other.Inputs
Outputs
| Type |
|---|
| Graph |
Graph, Scalar, 1.1.0
Collapses and merges the vertices of a Graph that are within a given distance of each other.Inputs
Outputs
| Type |
|---|
| Graph |
Lattice, Scalar
Collapses and merges the vertices of a Lattice that are within a given distance of each other.Inputs
Outputs
| Type |
|---|
| Lattice |
Lattice, Scalar, 1.1.0
Collapses and merges the vertices of a Lattice that are within a given distance of each other.Inputs
Outputs
| Type |
|---|
| Lattice |
Mesh, Scalar, 1.1.0
Collapses and merges the vertices of a surface Mesh that are within a given distance of each other.Inputs
Outputs
| Type |
|---|
| Mesh |
