About this Block

What it does: Combines adjacent nodes of multiple FE Meshes to generate a single FE Mesh. Nodes from the different meshes, within a distance tolerance, collapse into a single node. Commons uses:
  • Export one mesh object that may have disconnected pieces.
  • Merging a list of meshes for downstream use.
Tips:
  • The merged node will take the location from the first FE Mesh in the list.
    • For example, if two meshes are in a list, merged nodes will take the location of the first mesh in the list, and if you add a third mesh, the merged nodes of that mesh will be merged into the nodes in the mesh from the first merging process.
  • Nodes are merged, but faces and edges are preserved.
  • If the merged meshes have matching meshes on the interface, the inner multiple boundaries are removed.

​
Example File

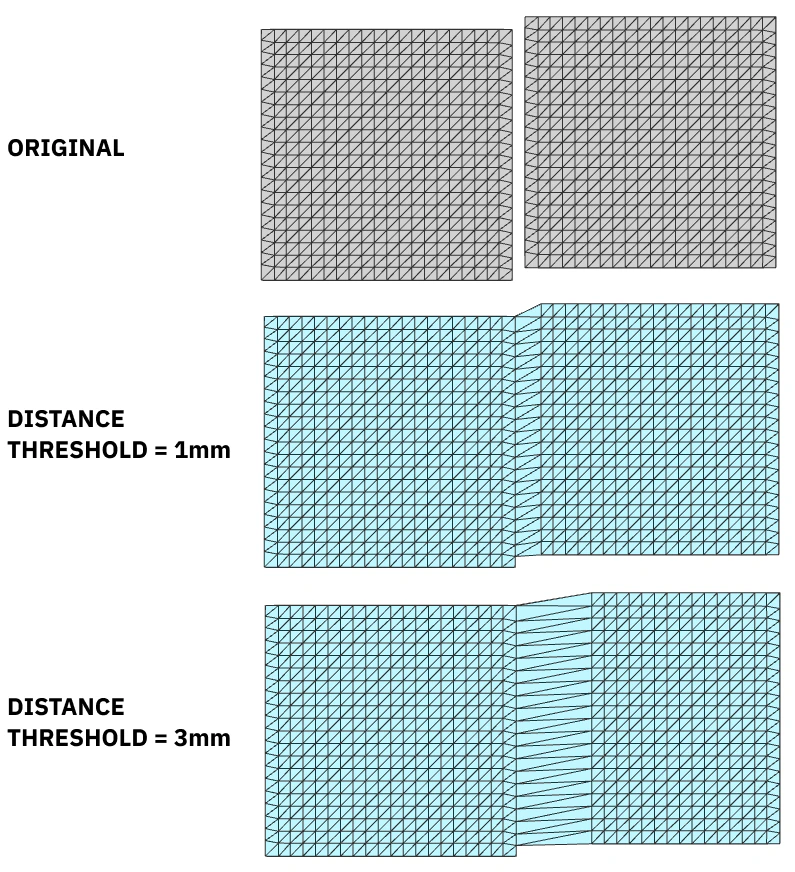

Download Example: Merge FE Mesh Merge FE Mesh Combine FE Meshes to generate one single mesh by collapsing nodes that are within a given tolerance.

​
Inputs

NameTypeDescription
MeshesFE Mesh ListThe meshes to merge.
Distance thresholdScalarVertices within this distance threshold will be merged together into one vertex.

​
Outputs

Type
FE Mesh
