About this Block

What it does: Takes a 3D mesh and adds integration points to each element within the mesh to allow for downstream analysis. Commons uses:
  • For use in downstream analysis, such as Topology Optimization and Static Analysis.
Tips:
  • The geometric order can be Linear, where integration points are added at every mesh intersection, or Quadratic, where integration points are added at the midpoint of the mesh edges.
  • Linear Geometric order is faster, but less accurate.
  • Quadratic Geometric order is slower, but more accurate. We recommend this option if you are using the results downstream.

​
Example File

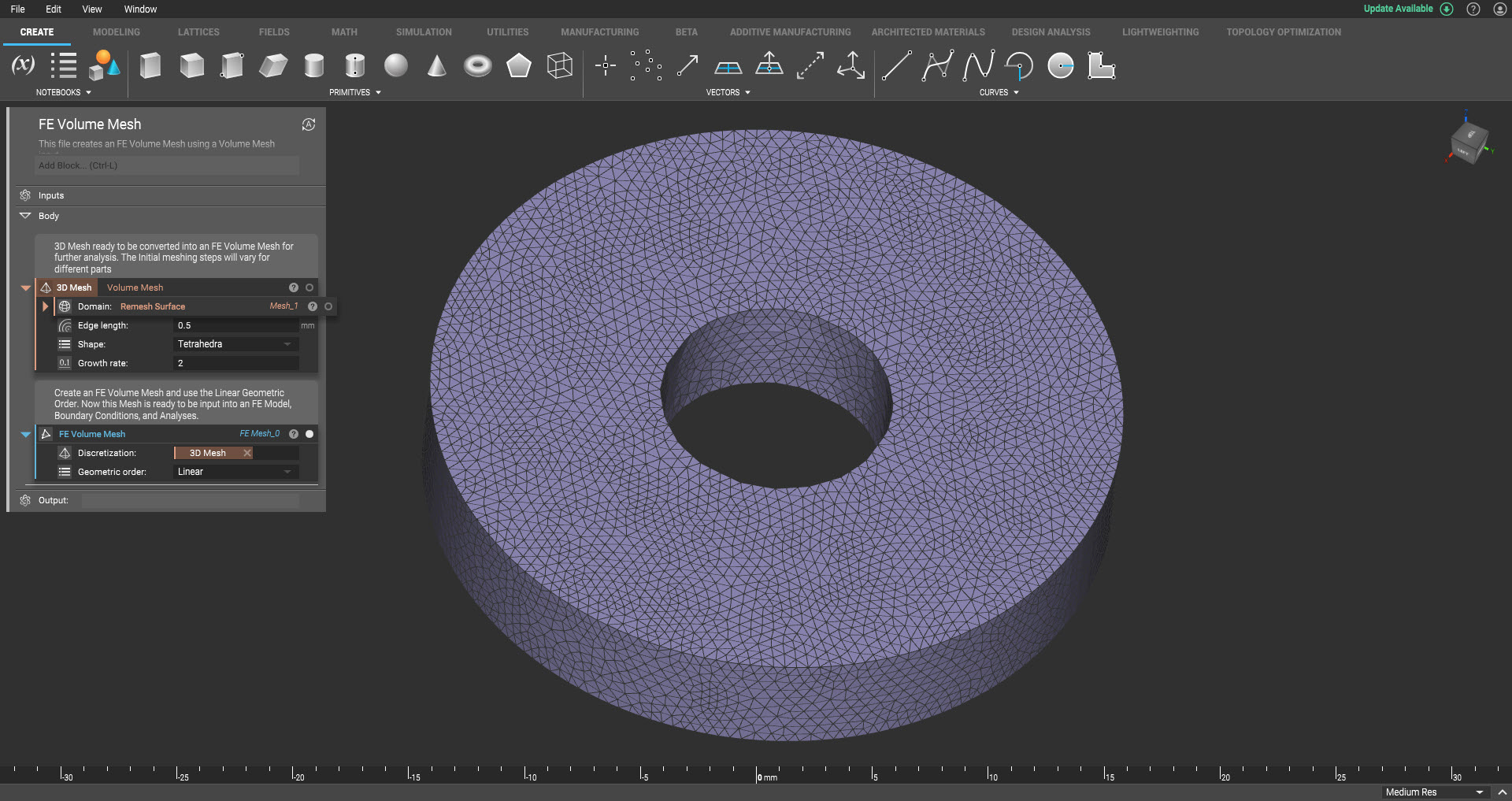

Download Example: FE Volume Mesh FE Volume Mesh Convert a Volume Mesh to an FE Mesh by adding integration points of the desired order to each element within the mesh.

​
Inputs

NameTypeDescription
DiscretizationVolume MeshThe input geometric discretization.
Geometric orderGeometric Order EnumThe geometric order of the finite elements.

​
Outputs

Type
FE Mesh
