FE Mesh, Planes, Bool, Scalar
FE Mesh, Planes, Bool, Scalar, 1.1.0
About this Block

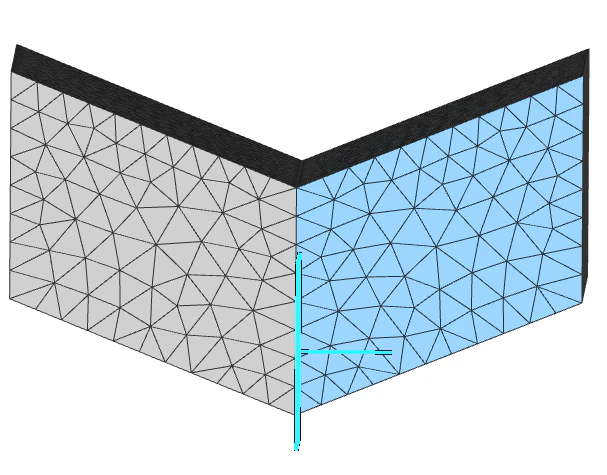

What it does: This block mirrors an existing FE Mesh to cut down processing time for symmetrical parts. Commons uses:- Topology Optimization
- Analysis
- Start with a part that is already halved or cut it in half using a Plane with Boolean Subtract.
- You can merge the meshes after mirroring or keep them separate. If you keep them separate, you will need to use a Connector in your FE Model.
Example File
Download Example: Mirror FE Mesh
FE Mesh, Planes, Bool, Scalar
Mirror an FE Mesh using planar symmetryInputs
| Name | Type | Description |
|---|---|---|
| Mesh | FE Mesh | The mesh to mirror. |
| Planes | Plane List | The mirror planes. |
| Merge | Bool | Option to merge all meshes after mirroring. |
| Tolerance | Scalar | The tolerance for determining coincident nodes. |
Outputs
| Type |
|---|
| FE Mesh |
FE Mesh, Planes, Bool, Scalar, 1.1.0
Mirror an FE Mesh using planar symmetryInputs
| Name | Type | Description |
|---|---|---|
| Mesh | FE Mesh | The mesh to mirror. |
| Planes | Plane List | The mirror planes. |
| Merge | Bool | Option to merge all meshes after mirroring. |
| Tolerance | Scalar | The tolerance for determining coincident nodes. |
Outputs
| Type |
|---|
| FE Mesh |
