About this Block
What it does: The Merge CAD Bodies block merges multiple CAD bodies into a single CAD body. Common uses:- Merge Shell and Infilled bodies
- To fix Merged body creates disjoint solids. This is currently not allowed., We currently don’t merge two disjoint parts. The workaround is to export it as individual CAD bodies by using the Split Mesh block and then merge in your CAD software.
- To fix Input bodies are intersecting., ensure that the inputs are not intersecting.
- Use the Refine Mesh block, if using CAD Body from Quad Mesh to get better results.

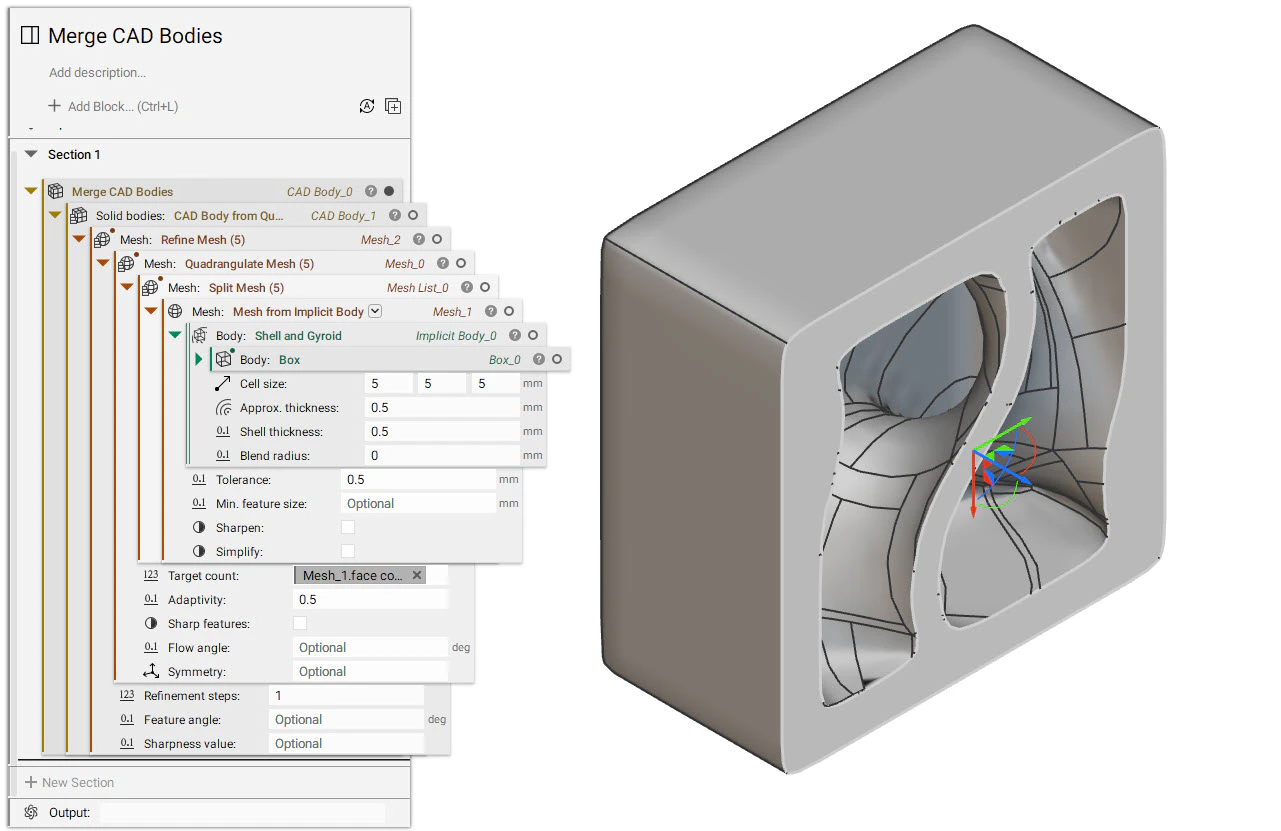

Example File
Combine a solid body with multiple inner voids to create a body with inner shells.
Inputs
| Name | Type | Description |
|---|---|---|
| Solid bodies | CAD Body List | List of CAD bodies to merge. |
Outputs
| Type |
|---|
| CAD Body |
