About this Block
What it does: The Mesh Face from Points block creates a mesh face from a list of points. Common uses:- Creating support structures
- Creating Graphs from Mesh Faces
- The list of points can only contain 3 or 4 points.
- When dragging a point list into the Points field, the auto-populated point list must be deleted first.

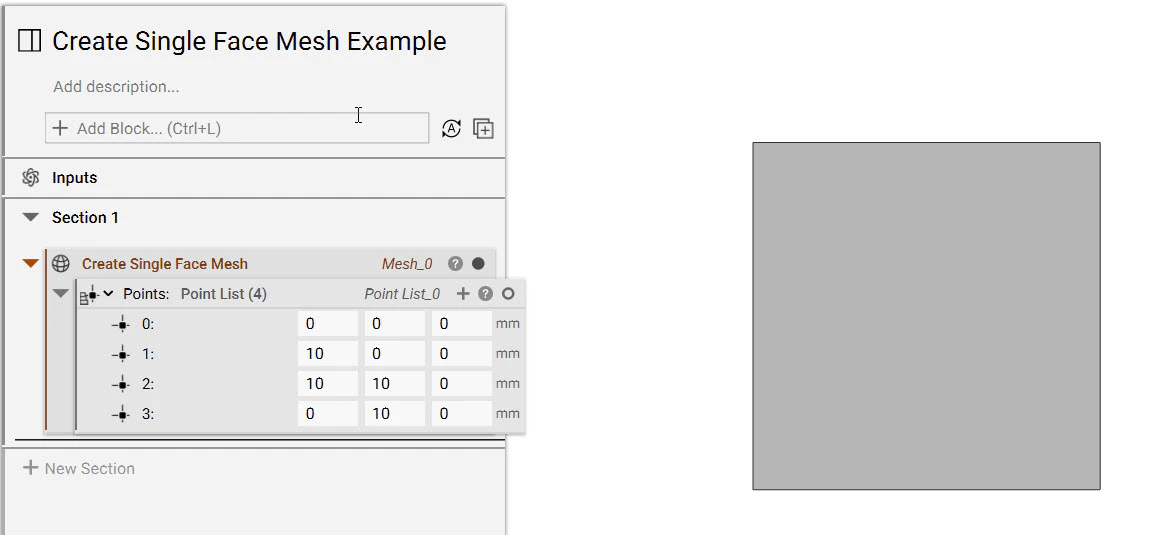

Example File
Creates a Mesh comprised of a single face from 3 or 4 vertex points. Input the face’s vertices in counter-clockwise order. If out of order, the face will be self-intersecting.
Inputs
| Name | Type | Description |
|---|---|---|
| Vertex 1 | Point | The first vertex of the mesh face. |
| Vertex 2 | Point | The second vertex of the mesh face, counter-clockwise from the first. If out of order, the face will self-intersect. |
| Vertex 3 | Point | The third vertex of the mesh face, counter-clockwise from the second. If out of order, the face will self-intersect. |
| Vertex 4 | Point | Optional fourth face vertex, counter-clockwise from the third. If out of order, the face will self-intersect. |
Outputs
| Type |
|---|
| Mesh |
