Implicit Body, Plane
Implicit Body, Plane, Scalar, 1.1.0
Implicit Body, Plane, Scalar, 5.20.0
About this Block

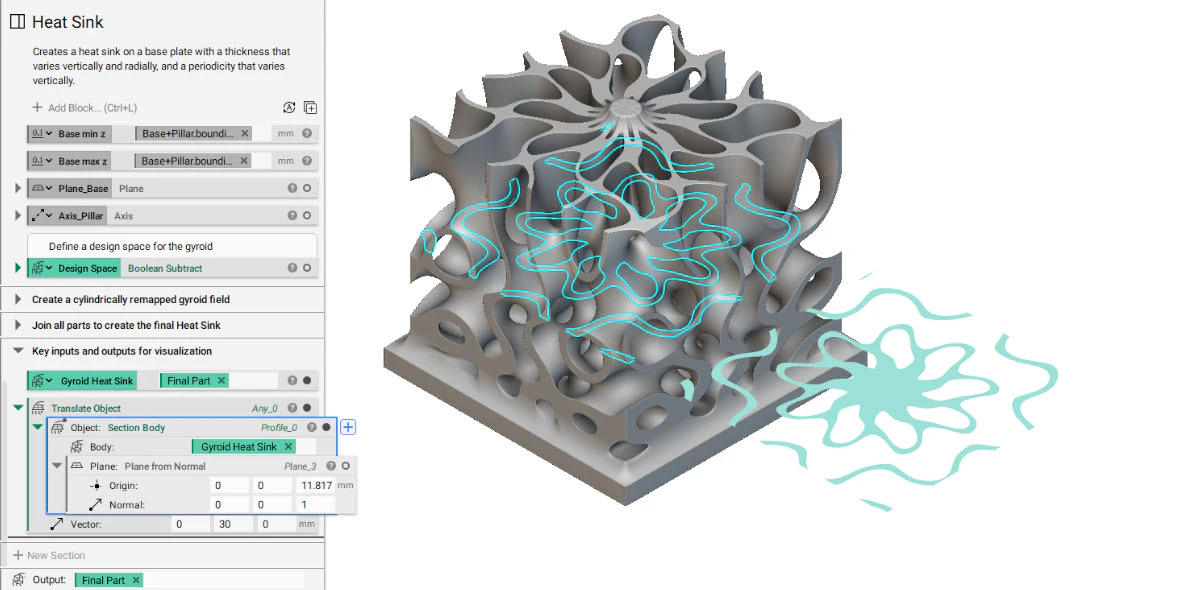

What it does: The Section Body block sections an Implicit Body with a Plane to create an Implicit Body of the profile. Common uses:- Calculate Surface Area of a cross-section.
- The Profile can be used as an input in Extrude Profile , Revolve Profile , Twisted Sweep Profile , and Sweep Profile blocks.
Example File
Implicit Body, Plane
Extract a profile from a section of an implicit body.Inputs
| Name | Type | Description |
|---|---|---|
| Body | Implicit Body | Implicit body to extract section profile from. |
| Plane | Plane | Plane to intersect with the implicit body. |
Outputs
| Type |
|---|
| Profile (old) |
Implicit Body, Plane, Scalar, 1.1.0
Extract a profile from a section of an implicit body.Inputs
| Name | Type | Description |
|---|---|---|
| Body | Implicit Body | Implicit body to extract section profile from. |
| Plane | Plane | Plane to intersect with the implicit body. |
| Min. feature size | Scalar | Option to specify the approximate size of the smallest feature(s) of the implicit body that will be captured. if not specified, 1% of the span length of the profile is taken as the smallest feature size. |
Outputs
| Type |
|---|
| Profile (old) |
Implicit Body, Plane, Scalar, 5.20.0
Extract a profile from a section of an implicit body.Inputs
| Name | Type | Description |
|---|---|---|
| Body | Implicit Body | Implicit body to extract section profile from. |
| Plane | Plane | Plane to intersect with the implicit body. |
| Min. feature size | Scalar | Option to specify the approximate size of the smallest feature(s) of the implicit body that will be captured. if not specified, 1% of the span length of the profile is taken as the smallest feature size. |
Outputs
| Type |
|---|
| Profile |
