About this Block
What it does: The Stitch CAD Surface Bodies block attempts to merge multiple CAD surface bodies or CAD faces together within a tolerance. Common uses:- Joining CAD Faces to create one body instead of multiple

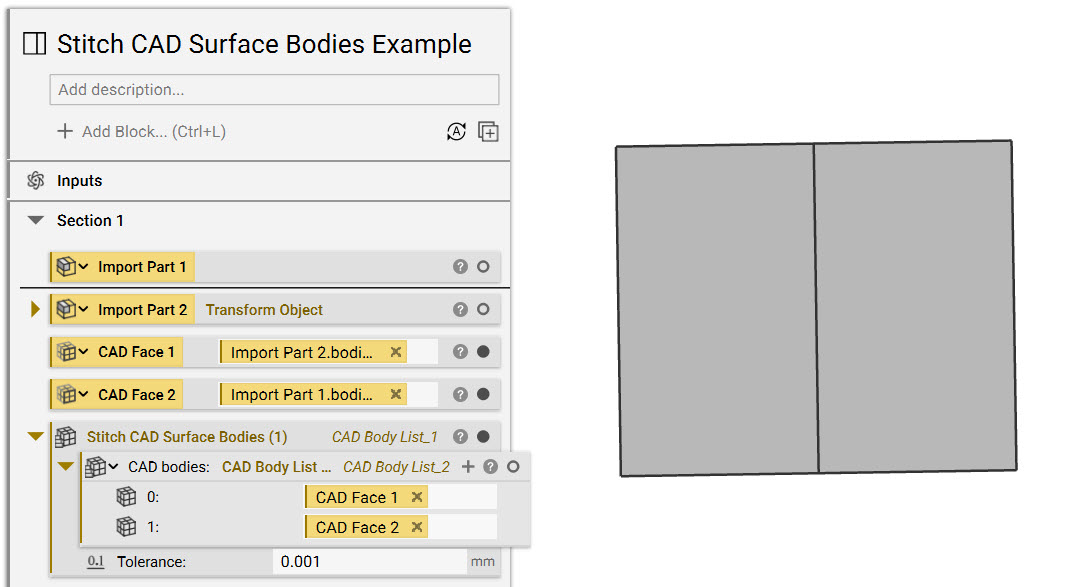

Example File
Download Example: StitchCADSurfaceBodies
Stitches together adjacent CAD faces into a single CAD body. During this operation CAD faces are not merged into a single face or surface. When this operation results in multiple CAD bodies an error will occur, instead use Stitch CAD Bodies which can return multiple bodies. For those looking to generate a Lattice across multiple CAD faces, it is recommended to generate a quad mesh from this block and then use the Cell Map from Quad Mesh + Periodic Lattice Blocks.
Inputs
| Name | Type | Description |
|---|---|---|
| Cad faces | CAD Face List | List of cad faces to attempt to join into a single cad body. |
| Tolerance | Scalar | Maximum gap width to attempt to sew adjacent cad faces. |
Outputs
| Type |
|---|
| CAD Body |
