About this Block

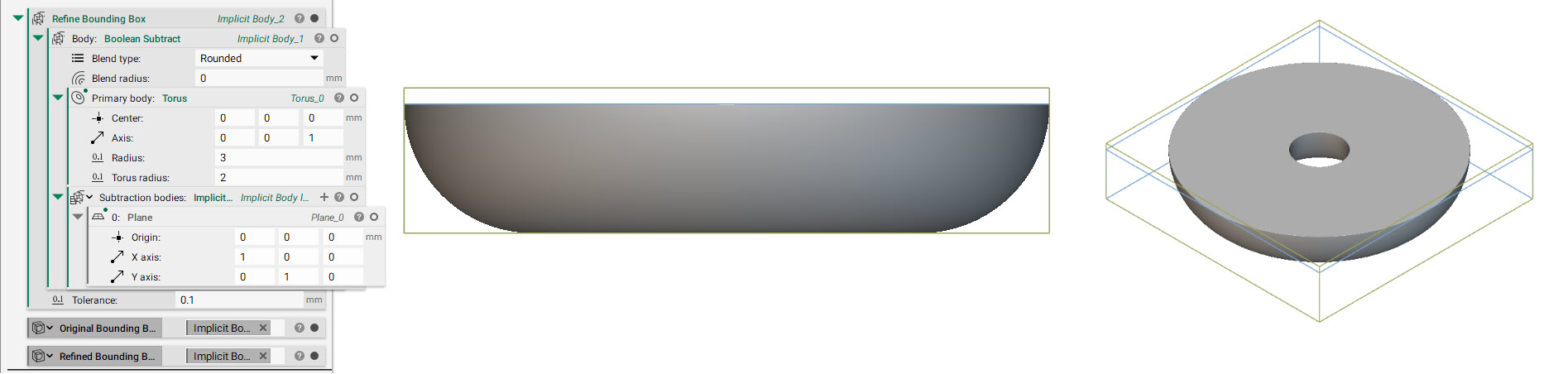

What it does: The Refine Bounding Box block refines the bounding box of an implicit body based on a given tolerance. This step ensures that the bounding box fits the body properly, often after performing boolean operations. Common uses:- Calculate a tight bounding box.
Example File
Download Example: Refine Bounding Box
Implicit Body, Scalar
Refine the bounding box of an implicit body given a tolerance.Inputs
| Name | Type | Description |
|---|---|---|
| Body | Implicit Body | Implicit body to refine. |
| Tolerance | Scalar | Sampling tolerance to refine the bounding box. |
Outputs
| Type |
|---|
| Implicit Body |
Implicit Body, Scalar, 1.1.0
Refine the bounding box of an implicit body given a tolerance.Inputs
| Name | Type | Description |
|---|---|---|
| Body | Implicit Body | Implicit body to refine. |
| Tolerance | Scalar | Sampling tolerance to refine the bounding box. |
Outputs
| Type |
|---|
| Implicit Body |
Implicit Body, Scalar, 2.0.0
Refines the Bounding Box of an Implicit Body given a Grid Size.Inputs
| Name | Type | Description |
|---|---|---|
| Body | Implicit Body | Refines the bounding box of this body. |
| Grid size | Scalar | Size of the sample grid spacing. as this value gets smaller, the resulting bounding box will be tighter, but will take longer to compute. |
Outputs
| Type |
|---|
| Implicit Body |
