About this Block

What it does: The Remove Mesh Faces by Body block removes individual faces of a mesh using an Implicit Body. Faces with at least one vertex within the implicit will remain. Common uses:
  • Removing mesh imperfections
Tips
  • If Reverse is checked, faces with at least one vertex outside the implicit will remain.

​

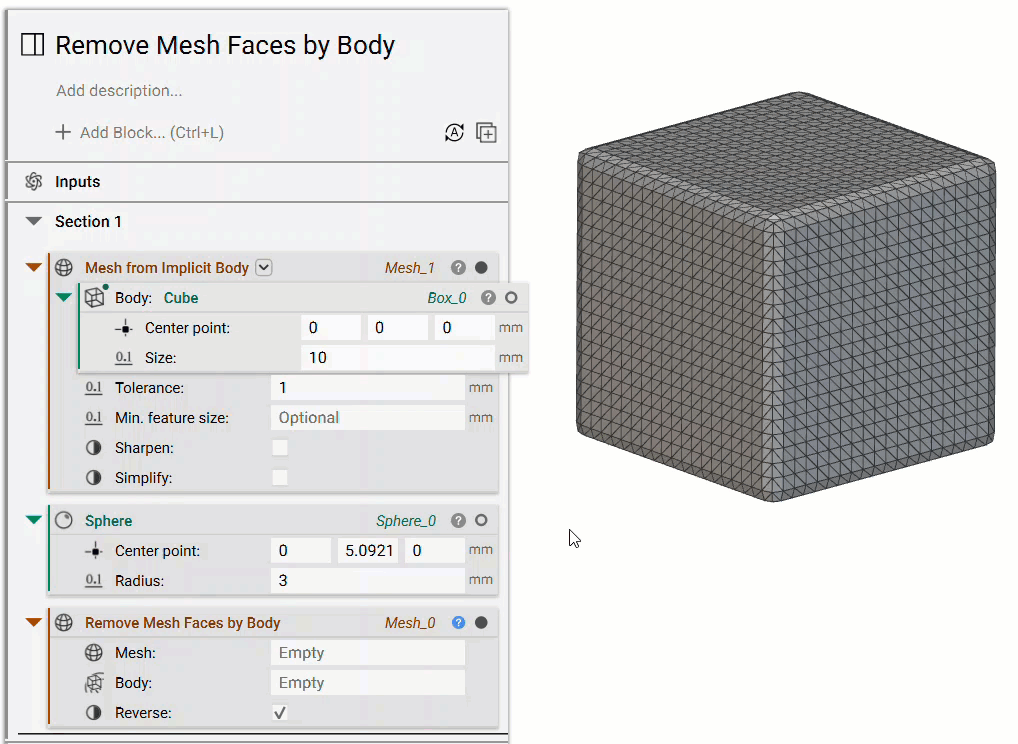

Example File

Remove Mesh Faces by Body Removes faces of a mesh using an Implicit Body. Faces with at least one vertex within the implicit will remain. If Reverse is checked, faces with at least one vertex outside of the implicit will remain.

​
Inputs

NameTypeDescription
MeshMeshThe surface mesh from which to remove faces.
BodyImplicit BodyThe implicit body selection tool.
ReverseBoolOption to select faces outside the implicit body instead of inside.

​
Outputs

Type
Mesh
